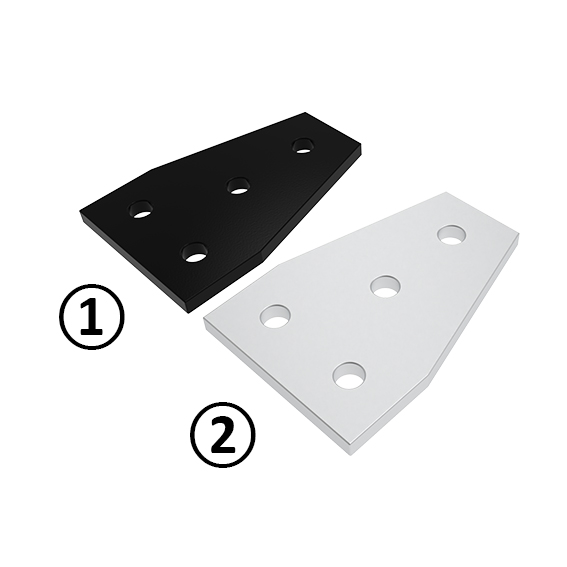

ECO Connection Plate AL T 4 Hole. 1 Slot Version

ECO Connection Plate AL T 4 Hole. 1 Slot Version

ECO Connection Plate AL T 4 Hole. 1 Slot Version - immagine 2

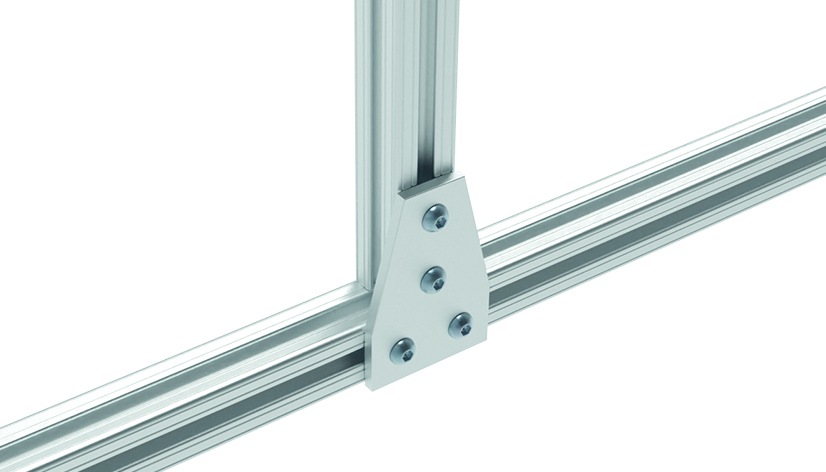

ECO Connection Plate AL T 4 Hole. 1 Slot Version - immagine 3

ECO Connection Plate AL T 4 Hole. 1 Slot Version - immagine 4

COD: 093EVT5176 Categoria: Piastre di collegamento

Caratteristiche Comuni alle Varianti

PFA_Color: Black

PFA_Model: Aluminum

PFA_Pack_Quantity: 10 pieces

PFA_Surface: Powder coated / anodized

PFA_Tip: Compatible ECO T-nut see 096E20M5S05 et sq.

Caratteristiche Prodotto

Produttore	FATH
Descrizione	ECO Connection Plate AL T 4 Hole. 1 Slot Version, Aluminum
Part number	093EVT5176
Materiale	Aluminum
Note	Powder coated / anodized Black

Caratteristiche specifiche varianti

PA_Part_No	PA_Weight_g	PA_Color	PA_Surface	PA_upper_H_mm	PA_upper_L_mm	PA_upper_K_mm	PA_upper_A_mm	PA_upper_B_mm	PA_diameter_upper_D_mm	PA_Version
093EVT5176S	42.0	Black	Powder coated	4.8 (0.19")	76.2 (3")	25.0 (0.98")	25.4 (1")	50.8 (2")	7.0 (0.27")	50.8 / 76.2 - 2" / 3"
093EVT76114S	121.0	Black	Powder coated	6.35 (0.25")	114.3 (4.5")	38.0 (1.49")	38.1 (1.5")	76.2 (3")	9.0 (0.35")	76.2 / 114.3 - 3" / 4.5"
093EVT5176	37.0		Anodized	4.8 (0.19")	76.2 (3")	25.0 (0.98")	25.4 (1")	50.8 (2")	7.0 (0.27")	50.8 / 76.2 - 2" / 3"
093EVT76114	116.0		Anodized	6.35 (0.25")	114.3 (4.5")	38.0 (1.49")	38.1 (1.5")	76.2 (3")	9.0 (0.35")	76.2 / 114.3 - 3" / 4.5"
