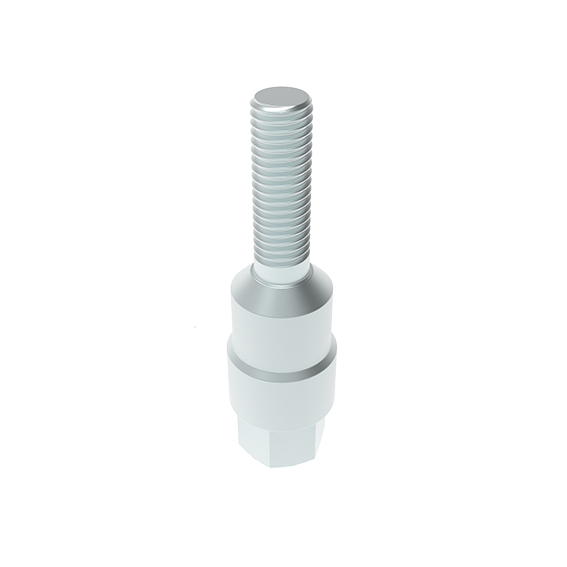

Threaded Connection Stud for Cube Connector

Threaded Connection Stud for Cube Connector

Threaded Connection Stud for Cube Connector - immagine 2

Threaded Connection Stud for Cube Connector - immagine 3

Threaded Connection Stud for Cube Connector - immagine 4

COD: 093GI72SI10A8SW17 Categoria: Connettori cubici

Caratteristiche Comuni alle Varianti

PFA_Model: Steel

PFA_Pack_Quantity: 1 piece

PFA_Surface: Zinc plated

Caratteristiche Prodotto

Produttore	FATH
Descrizione	Threaded Connection Stud for Cube Connector, Steel
Part number	093GI72SI10A8SW17
Materiale	Steel
Note	Zinc plated

Caratteristiche specifiche varianti

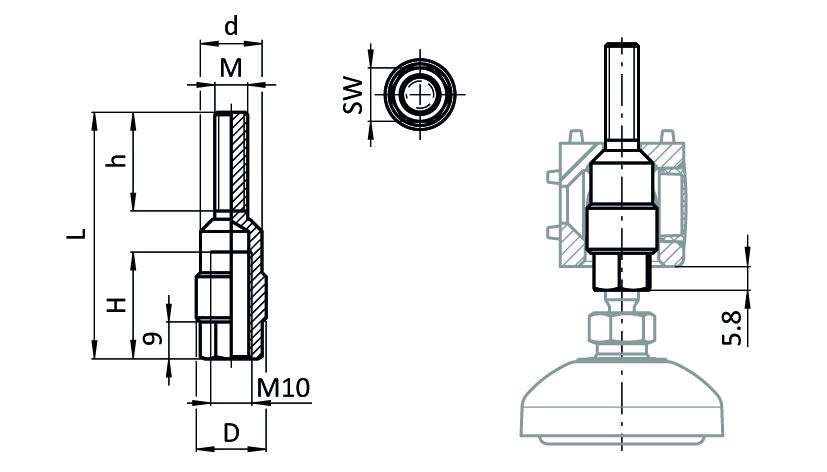

PA_Part_No	PA_Weight_g	PA_SW_mm	PA_upper_H_mm	PA_lower_h_mm	PA_upper_L_mm	PA_Profile	PA_upper_M	PA_diameter_lower_d_mm	PA_diameter_upper_D_mm	PA_Slot_upper_N_mm	PA_Version
093GB60SI10A8SW13	44.0	13	26.0	24.0	60.0	B	M8	15.0	17.0	8	For cube connector B30
093GI72SI10A8SW17	85.0	17	30.0	28.0	72.0	I	M8	15.0	23.0	8	For cube connector I40
093GB74SI10A12SW19	19.0	19	30.0	28.0	74.0	B	M12	19.0	23.0	10	For cube connector B40 or B45
