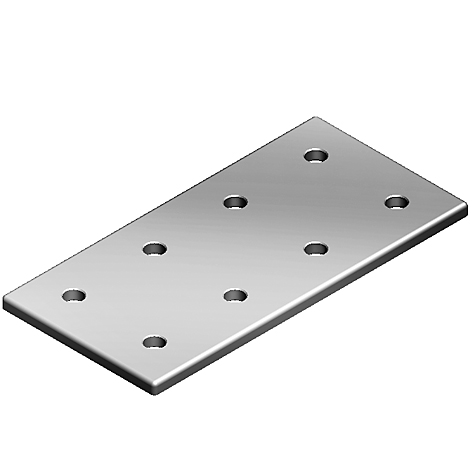

Connection Plate AL Rectangular 8 Hole. 2 Slots Version

Connection Plate AL Rectangular 8 Hole. 2 Slots Version

Connection Plate AL Rectangular 8 Hole. 2 Slots Version - immagine 2

Connection Plate AL Rectangular 8 Hole. 2 Slots Version - immagine 3

Connection Plate AL Rectangular 8 Hole. 2 Slots Version - immagine 4

COD: 093VD4080 Categoria: Piastre di collegamento

Caratteristiche Comuni alle Varianti

PFA_Model: Aluminum

PFA_Pack_Quantity: 10 pieces

PFA_Specials: Other surfaces. other colors on request

PFA_Surface: Anodized

Caratteristiche Prodotto

Produttore	FATH
Descrizione	Connection Plate AL Rectangular 8 Hole. 2 Slots Version, Aluminum
Part number	093VD4080
Materiale	Aluminum
Note	Anodized

Caratteristiche specifiche varianti

PA_Part_No	PA_Weight_g	PA_Surface	PA_upper_H_mm	PA_upper_L_mm	PA_upper_A_mm	PA_upper_B_mm	PA_diameter_upper_D_mm	PA_Version
093VD4080	27.0		4.0	76.0	20.0	36.0	5.5	40 / 80
093VD51102	47.0	Anodized	4.0	98.0 (3.858")	25.4 (1")	48.0 (1.89")	7.0	50.8 / 101.6 - 2" / 4"
093VD60120	85.0	Anodized	5.0	117.0	30.0	57.0	7.0	60 / 120
093VD80160	185.0	Anodized	6.0	156.0	40.0	76.0	9.0	80 / 160
093VD90180	240.0	Anodized	6.0	176.0	45.0	86.0	9.0	90 / 180
093VD76152	164.0	Anodized	6.0	148.0 (5.8")	38.1 (1.5")	72.0	9.0	76.2 / 152 - 3" / 5.98"
