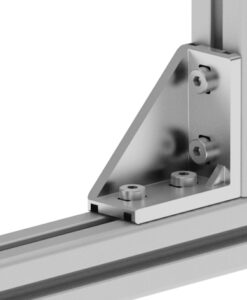

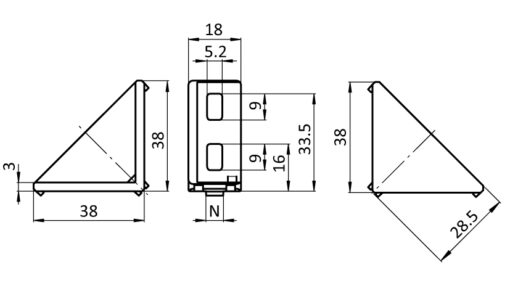

Alu Connection Angle 20 x 40

COD: 093W202N06S04 Categoria: Angolari alluminio

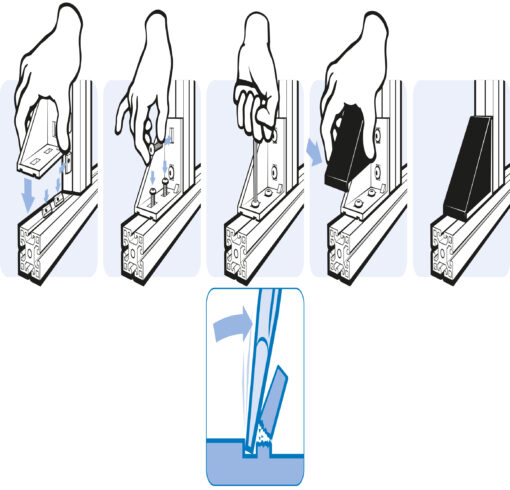

PFA_AssemblySet: 4 hammer nuts - slot 6 - M4. - 4 screws DIN 7984 - M4 x 8

PFA_Color: Angle: Alu color

PFA_Model: Aluminum die-cast. profile 20 and up

PFA_Pack_Quantity: 10 pieces / 10 set

PFA_Specials: Other surfaces. other colors on request

PFA_Surface: Angle: Plain / Powder coated - Assembly set: Zinc plated

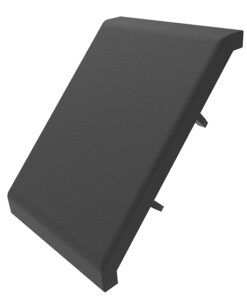

PFA_Tip: Compatible Cover Cap see 093WA202

PA_Assembly_Set: 4 hammer nuts - slot 6 - M4. - 4 screws DIN 7984 - M4 x 8

Caratteristiche Prodotto

Produttore	FATH
Descrizione	Alu Connection Angle 20 x 40, Aluminum die-cast. profile 20 and up
Part number	093W202N06S04
Materiale	Angle: Aluminum die-cast - Assembly set: Steel
Set	Angle: Aluminum die-cast - Cover cap: Plastic PA. glass fiber reinforced - Assembly set: Steel
Note	Angle: Plain / Powder coated - Assembly set: Zinc plated Angle: Alu color

PA_Part_No	PA_Weight_g	PA_Color	PA_Surface	PA_Profile	PA_Slot_upper_N_mm	PA_Version
093W202	13.2		Plain
093W202N05	13.2		Plain		5
093W202N06	13.2		Plain		6
093W202N06S04	13.4	Alu color	Powder coated		6
093W202N06S03	23.0		Plain	B	6	incl. assembly set
093W202N06S05	23.2	Alu color	Powder coated	B	6	incl. assembly set
