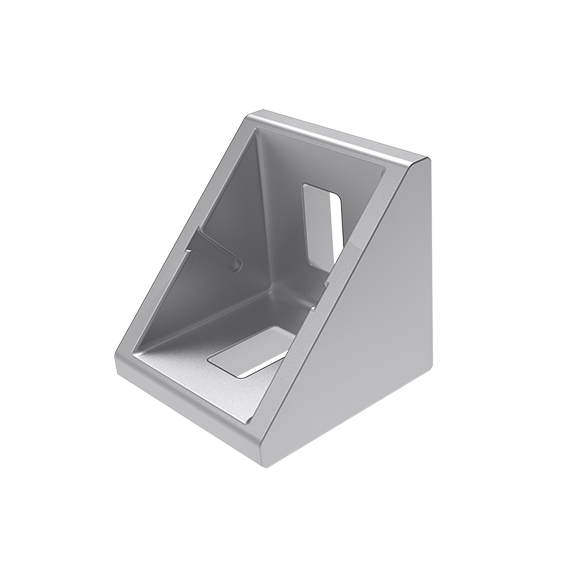

Alu Connection Angle 20

COD: 093W203N06S05 Categoria: Angolari alluminio

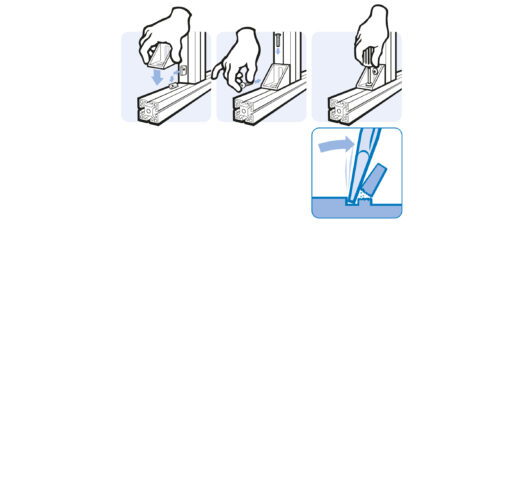

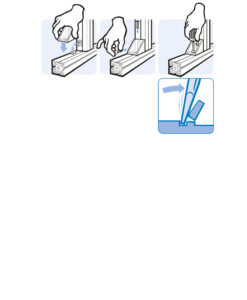

PFA_AssemblySet: 2 hammer nuts - slot 6 - M4. - 2 screws DIN 7984 - M4 x 8

PFA_Color: Angle: Alu color

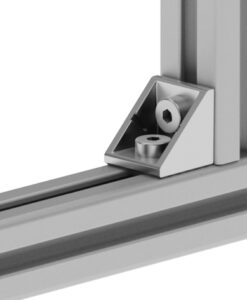

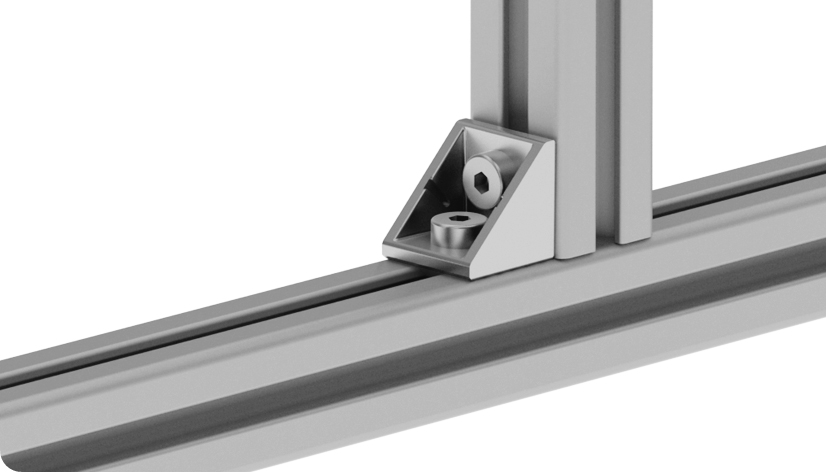

PFA_Model: Aluminum die-cast. profile 20 and up

PFA_Pack_Quantity: 10 pieces / 10 set

PFA_Specials: Other surfaces. other colors on request

PFA_Surface: Angle: Plain / Powder coated - Assembly set: Zinc plated

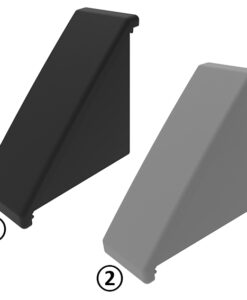

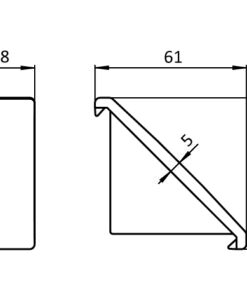

PFA_Tip: Compatible Cover Cap see 093WA203

Caratteristiche Prodotto

Produttore	FATH
Descrizione	Alu Connection Angle 20, Aluminum die-cast. profile 20 and up
Part number	093W203N06S05
Materiale	Angle: Aluminum die-cast - Assembly set: Steel
Note	Angle: Plain / Powder coated - Assembly set: Zinc plated Angle: Alu color

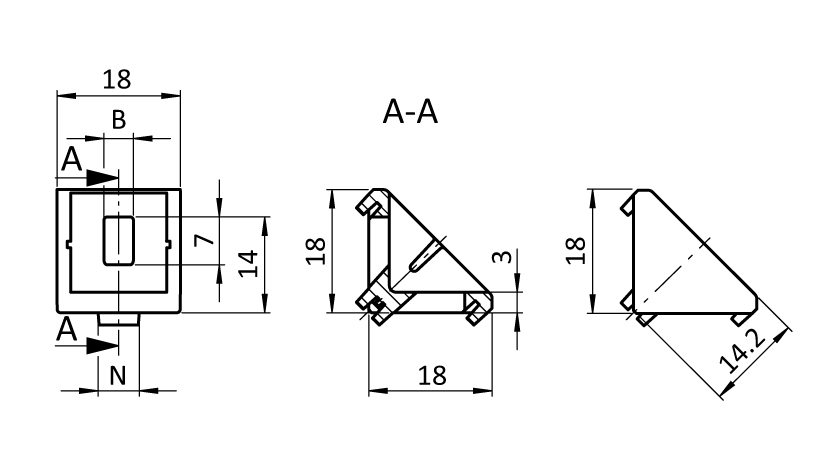

PA_Part_No	PA_Weight_g	PA_Color	PA_Surface	PA_Profile	PA_upper_B_mm	PA_Assembly_Set	PA_Slot_upper_N_mm	PA_Version
093W203	4.4		Plain		4.3	2 hammer nuts - slot 6 - M4. - 2 screws DIN 7984 - M4 x 8
093W203N05	4.6		Plain		4.3	2 hammer nuts - slot 6 - M4. - 2 screws DIN 7984 - M4 x 8	5
093W203N06	4.8		Plain		4.3	2 hammer nuts - slot 6 - M4. - 2 screws DIN 7984 - M4 x 8	6
093W203N06S03	4.8	Alu color	Powder coated		4.3	2 hammer nuts - slot 6 - M4. - 2 screws DIN 7984 - M4 x 8	6
093W203N06S01	7.0		Plain	B	4.3	2 hammer nuts - slot 6 - M4. - 2 screws DIN 7984 - M4 x 8	6	incl. assembly set
093W203N06S04	12	Alu color	Powder coated	B	4.3	2 hammer nuts - slot 6 - M4. - 2 screws DIN 7984 - M4 x 8	6	incl. assembly set
093W203S01	4.2		Plain		5.3
093W203N05S03	4.4		Plain		5.3		5
093W203N06S05	4.6		Plain		5.3		6
