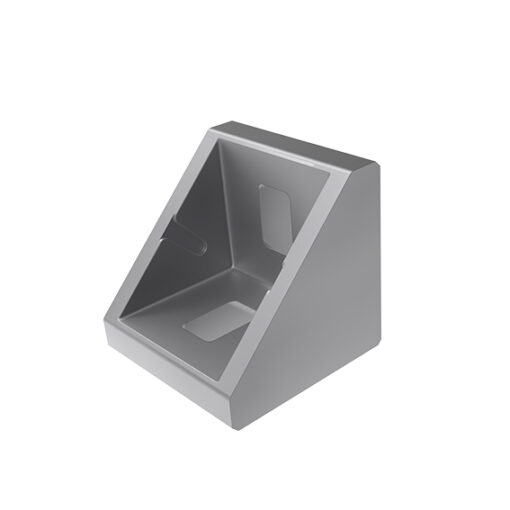

Alu Connection Angle 30

COD: 093W303N08S11 Categoria: Angolari alluminio

PFA_AssemblySet1: 2 hammer nuts - slot 8 - M6. - 2 screws DIN 7984 - M6 x 14

PFA_AssemblySet2: 1 hammer nut - slot 8 - M6. - 1 screw DIN 7984 - M6 x 14. - 1 hammer nut - slot 10 - M6. - 1 screw DIN 7984 - M6 x 18

PFA_AssemblySet3: 2 hammer nuts - slot 10 - M6. - 2 screws DIN 7984 - M6 x 18

PFA_Color: Angle: Alu color

PFA_Model: Aluminum die-cast. profile 30 and up

PFA_Pack_Quantity: 10 pieces / 10 set

PFA_Specials: Other surfaces. other colors on request

PFA_Surface: Angle: Plain / Powder coated - Assembly set: Zinc plated

PFA_Tip: Compatible Centering Piece Widening Slot 8 to Slot 10 see 093W02 - Compatible Cover Cap see 093WA303S02

Caratteristiche Prodotto

Produttore	FATH
Descrizione	Alu Connection Angle 30, Aluminum die-cast. profile 30 and up
Part number	093W303N08S11
Materiale	Angle: Aluminum die-cast - Assembly set: Steel
Set	Angle: Aluminum die-cast - Cover Cap: Plastic PA. glass fiber reinforced - Centering piece: Nyoln PA. glass fiber reinforced - Assembly set: Steel
Note	Angle: Plain / Powder coated - Assembly set: Zinc plated Angle: Alu color

PA_Part_No	PA_Weight_g	PA_Color	PA_Surface	PA_Profile	PA_Slot_upper_N_mm	PA_Version
093W303	19.8		Plain
093W303N06	20.4		Plain		6
093W303N08	20.6		Plain		8
093W303N10	20.8		Plain		10
093W303N08S12	20.6	Alu color	Powder coated		8
093W303N08S11	35.0		Plain	B	8	With assembly set 1
093W303N08S09	40.0		Plain	B	8 / 10	With assembly set 2
093W303N10S02	46.0		Plain	B	10	With assembly set 3
093W303N08S13	48.0	Alu color	Powder coated	B	8	With assembly set 1
093W303N08S14	38.0	Alu color	Powder coated	B	8 / 10	With assembly set 2
093W303N10S03	46.0	Alu color	Powder coated	B	10	With assembly set 3
