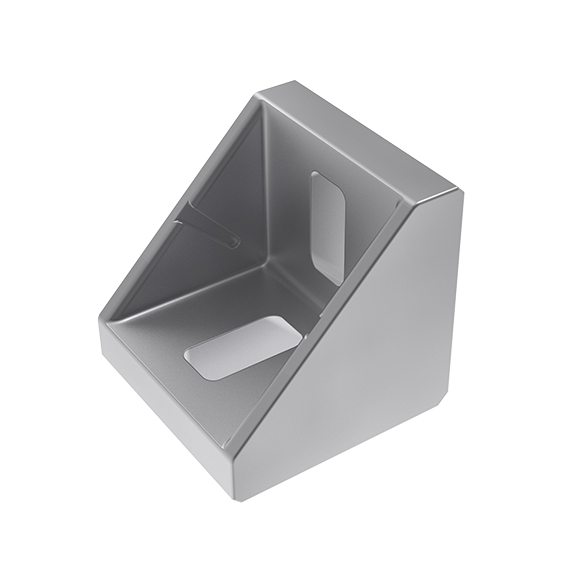

Alu Connection Angle 45

COD: 093W421 Categoria: Angolari alluminio

PFA_AssemblySet: 2 hammer screws - slot 10 - M8 x 25. - 2 flange nuts M8

PFA_Color: Alu color

PFA_Model: Aluminum die-cast. profile 45 and up

PFA_Pack_Quantity: 10 pieces / 10 set

PFA_Specials: Other surfaces. other colors on request

PFA_Surface: Angle: Plain / Powder coated - Assembly set: Zinc plated

PFA_Tip: Compatible Centering Piece Widening Slot 8 to Slot 10 see 093W02 - Compatible Flat Cover Cap see 093WA421S02

PA_Assembly_Set: 2 hammer head screws - slot 10 - M8 x 25. - 2 flange nuts M8

Caratteristiche Prodotto

Produttore	FATH
Descrizione	Alu Connection Angle 45, Aluminum die-cast. profile 45 and up
Part number	093W421
Materiale	Angle: Aluminum die-cast - Assembly set: Steel
Note	Angle: Plain / Powder coated - Assembly set: Zinc plated Alu color

PA_Part_No	PA_Weight_g	PA_Color	PA_Surface	PA_Profile	PA_Slot_upper_N_mm	PA_Version
093W421	49.5		Plain
093W421N08	50.7		Plain		8
093W421N10	53.6		Plain		10
093W421N10S08	54.0	Alu color	Powder coated		10
093W421N10S04	97.6		Plain	B	10	incl. assembly set
093W421N10S09	98.0	Alu color	Powder coated	B	10	incl. assembly set
