COD: 093WG403
Categoria: Angolare bloccabile
Caratteristiche Comuni alle Varianti
PFA_Color: Body: Alu color - Knurled screw: Black
PFA_Model: Aluminum die-cast
PFA_Pack_Quantity: 10 sets
PFA_Set: 1 angle locking bracket incl. knurled screw. - 2 screws DIN 7984 - M8 x 18. - 2 screws ISO 7380 - M8 x 18. - 2 shims DIN EN ISO 7089 (DIN 125) - 8.4. - 4 T-slot nuts - slot 8 - M8
PFA_Surface: Body: Powder coated - Assembly material: Zinc plated
PA_Weight_g: 275.0
PA_Set: 1 angle locking bracket incl. knurled screw. - 2 screws DIN 7984 - M8 x 18. - 2 screws ISO 7380 - M8 x 18. - 2 shims DIN EN ISO 7089 (DIN 125) - 8.4. - 4 T-slot nuts - slot 8 - M8
Caratteristiche Prodotto
| Produttore | FATH |
|---|---|

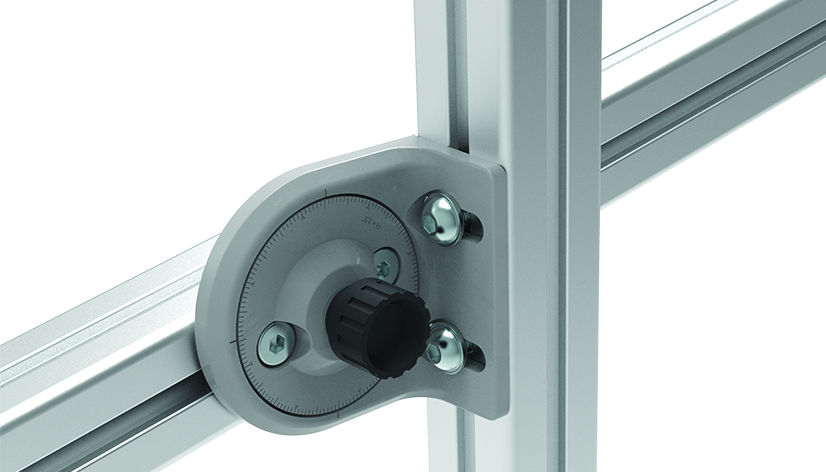

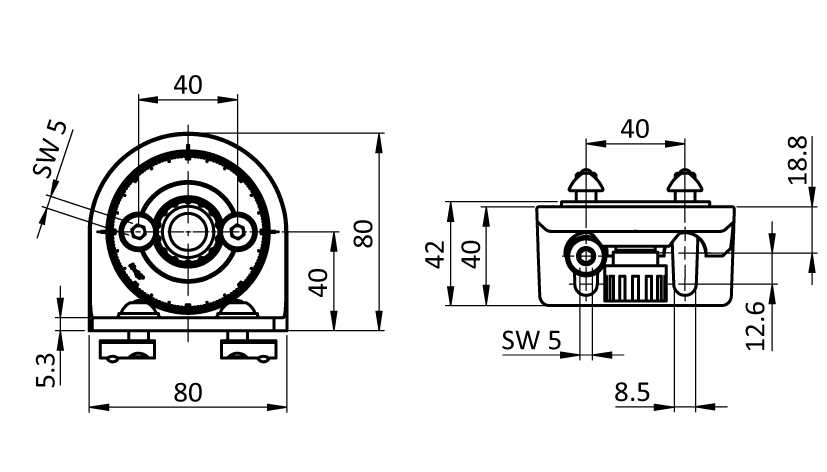

| Descrizione | Angle Locking Bracket 40 x 80 (Set), Aluminum die-cast |
| Part number | 093WG403 |
| Materiale | Body: Aluminum die-cast - Knurled screw: Plastic PA. glass fiber reinforced - Assembly material: Steel |
| Note | Body: Powder coated - Assembly material: Zinc plated Body: Alu color - Knurled screw: Black |
Caratteristiche specifiche varianti
| PA_Part_No |
|---|
| 093WG403 |
