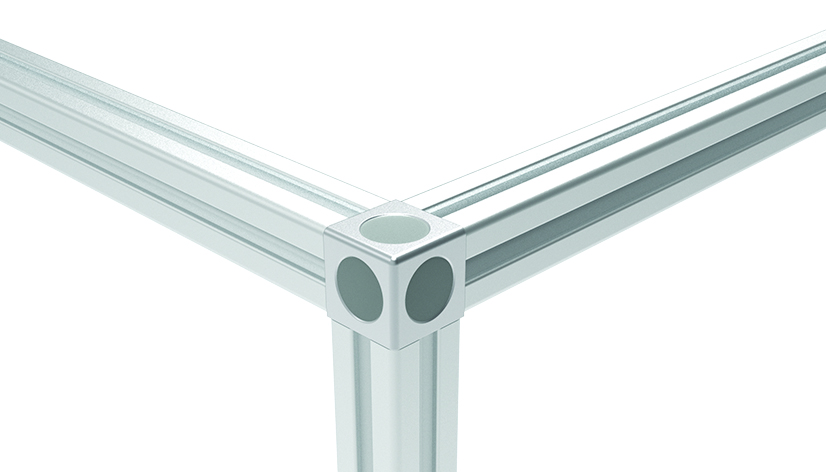

Cube Connector 20. 3D

COD: 093WW204N05S01 Categoria: Connettori cubici

PFA_AssemblySet1: 3 screws ISO 7380 - M5 x 14

PFA_AssemblySet2: 3 self-forming screws S6 x 16 - AF 4

PFA_Color: Cube connector: Alu color - Cover caps: Black / alu color

PFA_Model: Zinc die-cast. with Cover Caps

PFA_Pack_Quantity: 10 pieces

PFA_Surface: Cube connector: Plain / powder coated - Cover caps: Laquered - Assembly set: Zinc plated

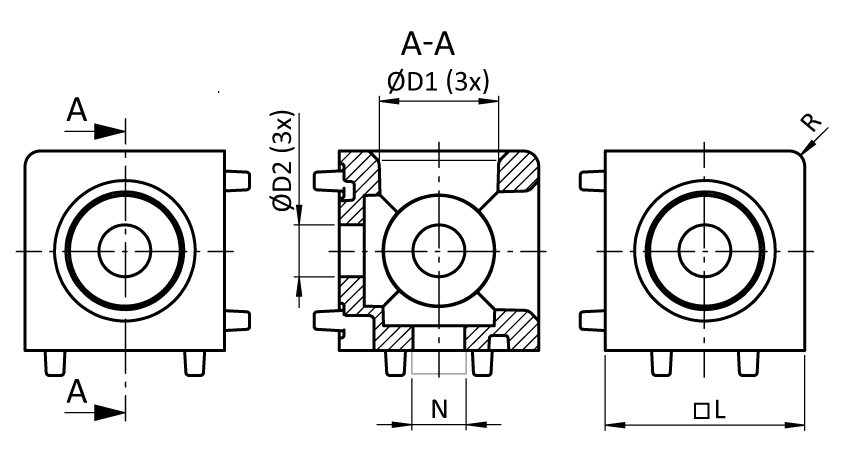

PA_upper_L_mm: 20.0

PA_upper_D1_mm: 12.0

PA_upper_R_mm: 1.5

Caratteristiche Prodotto

Produttore	FATH
Descrizione	Cube Connector 20. 3D, Zinc die-cast. with Cover Caps
Part number	093WW204N05S01
Materiale	Cube connector: Zinc die-cast - Cover caps: Plastic PA - Assembly set: Steel
Note	Cube connector: Plain / powder coated - Cover caps: Laquered - Assembly set: Zinc plated Cube connector: Alu color - Cover caps: Black / alu color

PA_Part_No	PA_Weight_g	PA_Color	PA_Surface	PA_Profile	PA_upper_D2_mm	PA_Assembly_Set	PA_Slot_upper_N_mm	PA_Version
093WW204N05	28.0	Alu color	Powder coated	I	5.2		5	Cover cap: alu color
093WW204N06R	26.0		Plain	B	6.3		6	Cover cap: Black
093WW204N05S01	35.0	Alu color	Powder coated	I	5.2	With assembly set 1	5	Cover cap: alu color
093WW204N06RS	38.0		Plain	B	6.3	With assembly set 2	6	Cover cap: Black
