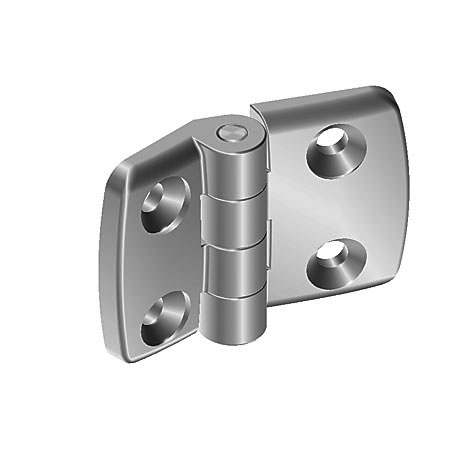

Aluminum Die-cast Combi Hinge 30. Non-detachable. Alu Color

COD: 095A3035F Categoria: Cerniere in Alluminio

PFA_Color: Wing: Alu color

PFA_Fastening: From the front. using M6 countersunk screws

PFA_Model: Non-detachable

PFA_Pack_Quantity: 10 pieces

PFA_Surface: Wings: Powder coated - Pin: Plain

PFA_Tip: Compatible Central Bolts see 095AN05

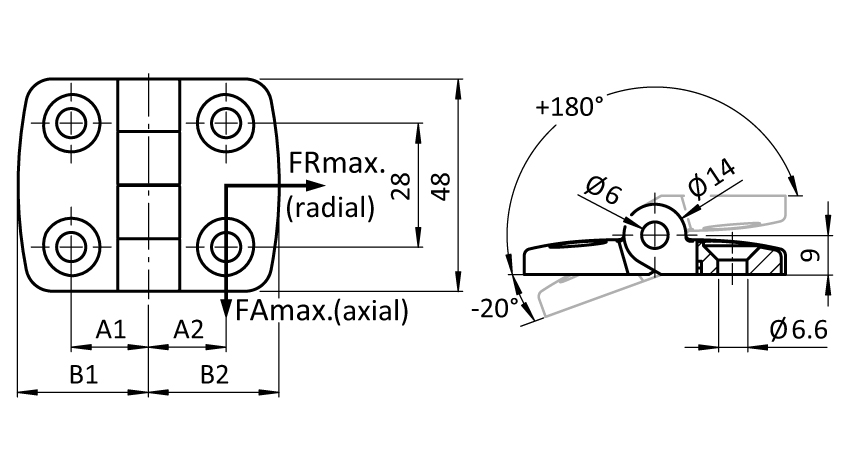

PA_upper_A1_mm: 17.5

PA_upper_B1_mm: 29.5

PA_Version: Non-detachable

Caratteristiche Prodotto

Produttore	FATH
Descrizione	Aluminum Die-cast Combi Hinge 30. Non-detachable. Alu Color, Non-detachable
Part number	095A3035F
Materiale	Wings: Die-cast aluminum - Pin: Stainless steel - Bearings: PTFE
Note	Wings: Powder coated - Pin: Plain Wing: Alu color

PA_Part_No	PA_Weight_g	PA_Combination	PA_upper_A2_mm	PA_upper_B2_mm	PA_FAmax_N	PA_FRmax_N
095A3030F	65.0	30 / 30	17.5	29.5	225	325
095A3035F	69.0	30 / 35	20.0	36.0	225	325
095A3040F	67.0	30 / 40	22.5	38.5	250	400
095A3045F	69.0	30 / 45	25.0	43.5	250	400
095A3050F	72.0	30 / 50	27.5	48.5	250	400
095A3060F	77.0	30 / 60	32.5	57.5	100	400
