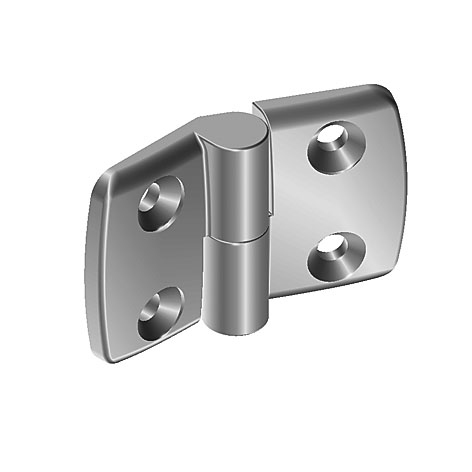

Aluminum Die-cast Combi Hinge 35. Detachable. Alu Color

COD: 095A3530R Categoria: Cerniere in Alluminio

PFA_Color: Wing: Alu color

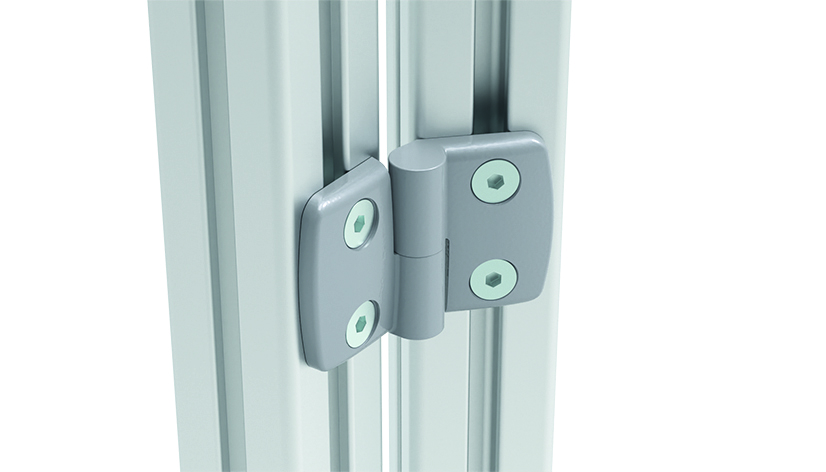

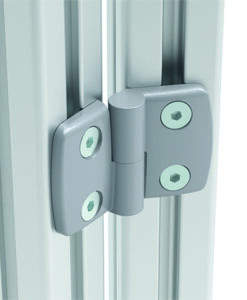

PFA_Fastening: From the front. using M6 countersunk screws

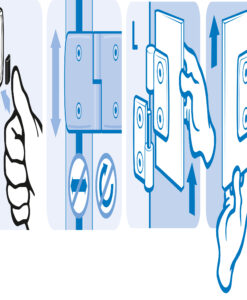

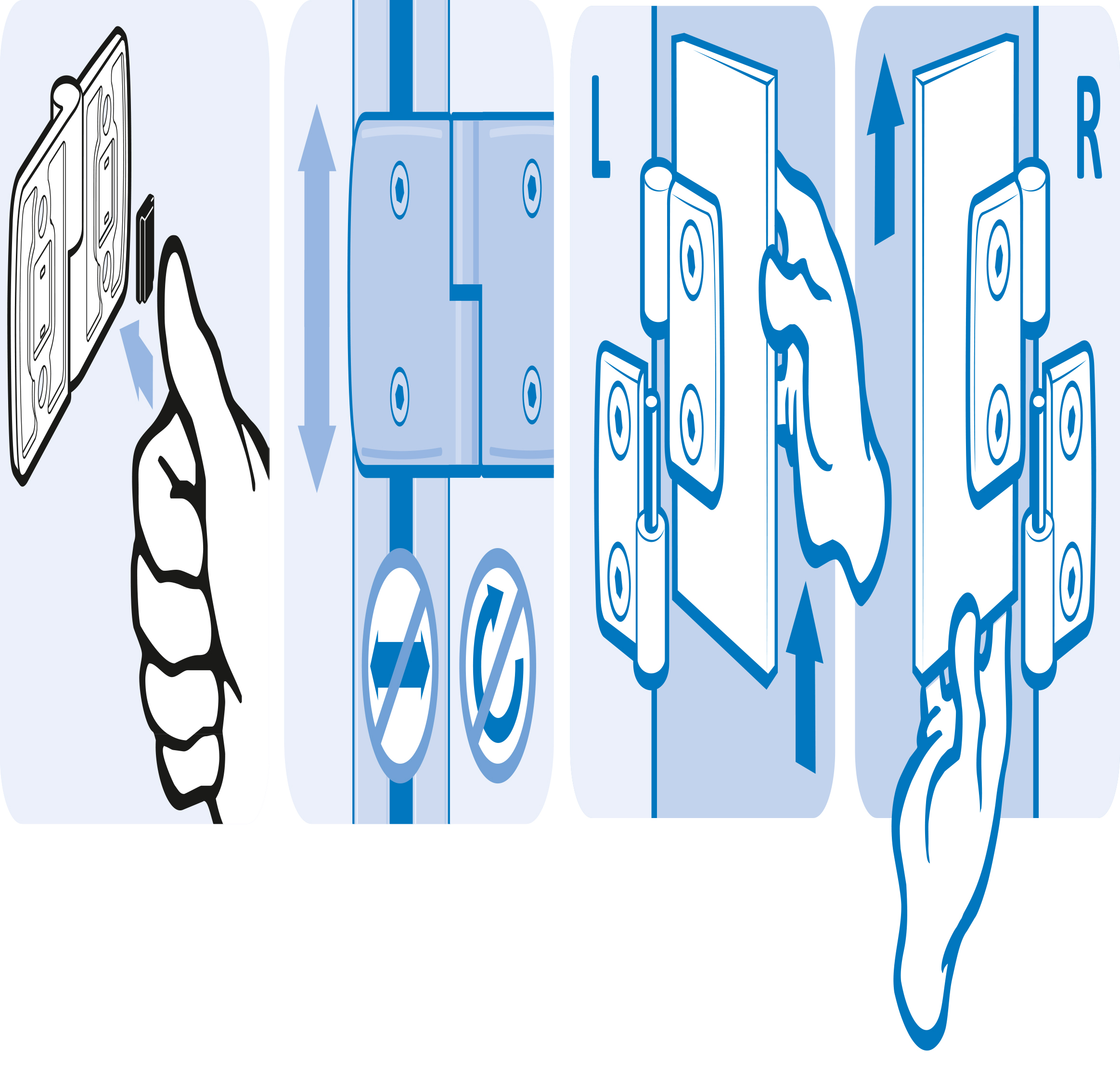

PFA_Model: Detachable

PFA_Pack_Quantity: 10 pieces

PFA_Surface: Wings: Powder coated - Pin: Plain

PFA_Tip: Compatible Central Bolts see 095AN05

Caratteristiche Prodotto

Produttore	FATH
Descrizione	Aluminum Die-cast Combi Hinge 35. Detachable. Alu Color, Detachable
Part number	095A3530R
Materiale	Wings: Die-cast aluminum - Pin: Stainless steel - Bearings: PTFE
Note	Wings: Powder coated - Pin: Plain Wing: Alu color

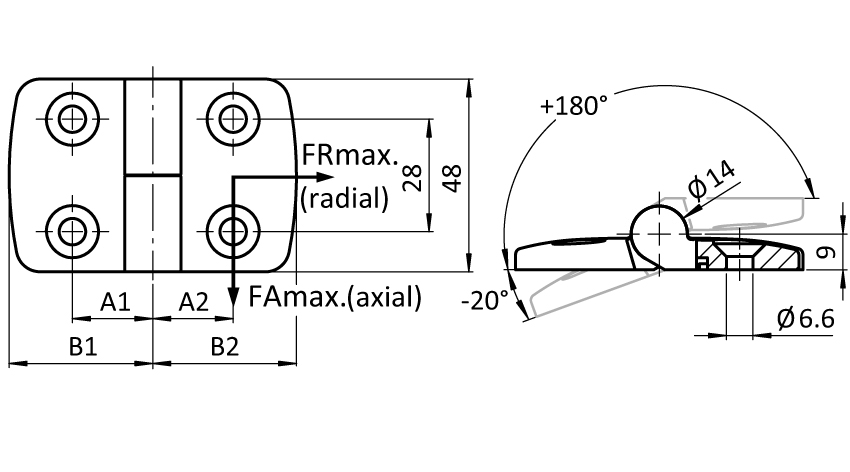

PA_Part_No	PA_Weight_g	PA_Combination	PA_upper_A1_mm	PA_upper_A2_mm	PA_upper_B1_mm	PA_upper_B2_mm	PA_FAmax_N	PA_FRmax_N	PA_Version
095A3535L	72.0	35 / 35	20.0	20.0	36.0	36.0	250	500	L: Left
095A3525L	64.0	35 / 25	20.0	15.0	36.0	26.0	250	410	L: Left
095A3530L	68.0	35 / 30	20.0	17.5	36.0	29.5	280	450	L: Left
095A3540L	70.0	35 / 40	20.0	22.5	36.0	38.5	200	550	L: Left
095A3535R	72.0	35 / 35	20.0	20.0	36.0	36.0	250	500	R: Right
095A3525R	64.0	35 / 25	15.0	20.0	26.0	36.0	250	410	R: Right
095A3530R	68.0	35 / 30	17.5	20.0	29.5	36.0	280	450	R: Right
