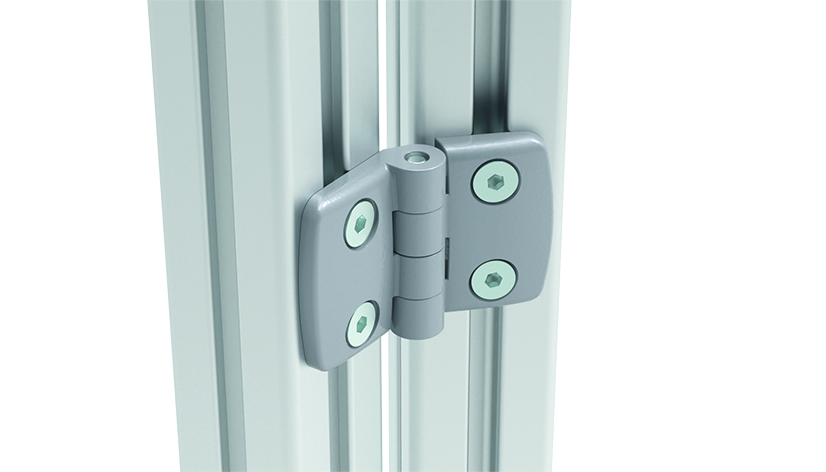

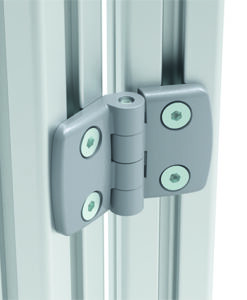

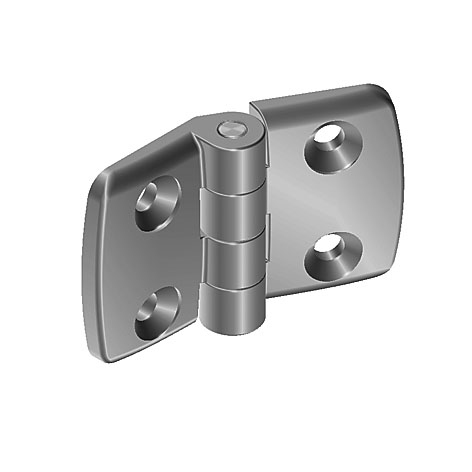

Aluminum Die-cast Combi Hinge 35. Non-detachable. Alu Color

COD: 095A3540F Categoria: Cerniere in Alluminio

PFA_Color: Wing: Alu color

PFA_Fastening: From the front. using M6 countersunk screws

PFA_Model: Non-detachable

PFA_Pack_Quantity: 10 pieces

PFA_Surface: Wings: Powder coated - Pin: Plain

PFA_Tip: Compatible Central Bolts see 095AN05

PA_upper_A1_mm: 20.0

PA_upper_B1_mm: 36.0

PA_Version: Non-detachable

Caratteristiche Prodotto

Produttore	FATH
Descrizione	Aluminum Die-cast Combi Hinge 35. Non-detachable. Alu Color, Non-detachable
Part number	095A3540F
Materiale	Wings: Die-cast aluminum - Pin: Stainless steel - Bearings: PTFE
Note	Wings: Powder coated - Pin: Plain Wing: Alu color

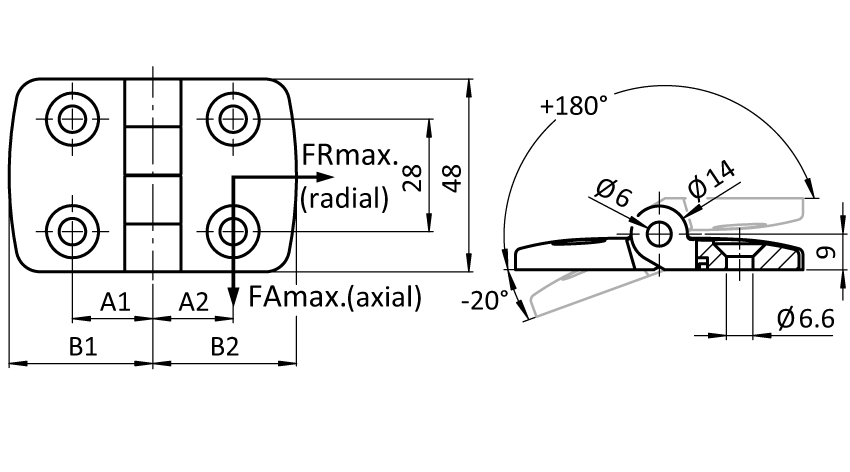

PA_Part_No	PA_Weight_g	PA_Combination	PA_upper_A2_mm	PA_upper_B2_mm	PA_FAmax_N	PA_FRmax_N
095A3535F	73.0	35 / 35	20.0	36.0	225	325
095A3540F	71.0	35 / 40	22.5	38.5	250	400
095A3545F	73.0	35 / 45	25.0	43.5	250	400
095A3550F	76.0	35 / 50	27.5	48.5	250	400
095A3560F	81.0	35 / 60	32.5	57.5	100	400
