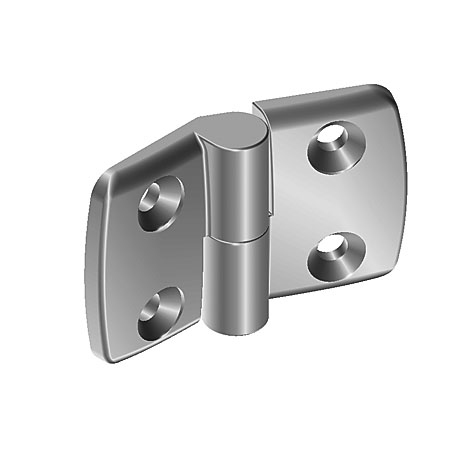

Aluminum Die-cast Combi Hinge 40. Detachable. Alu Color

COD: 095A4040L Categoria: Cerniere in Alluminio

PFA_Color: Wing: Alu color

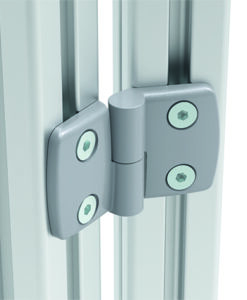

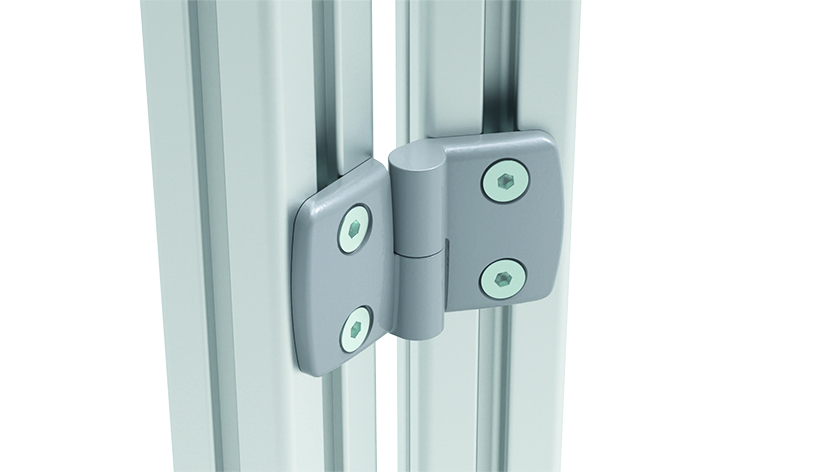

PFA_Fastening: From the front. using M6 countersunk screws

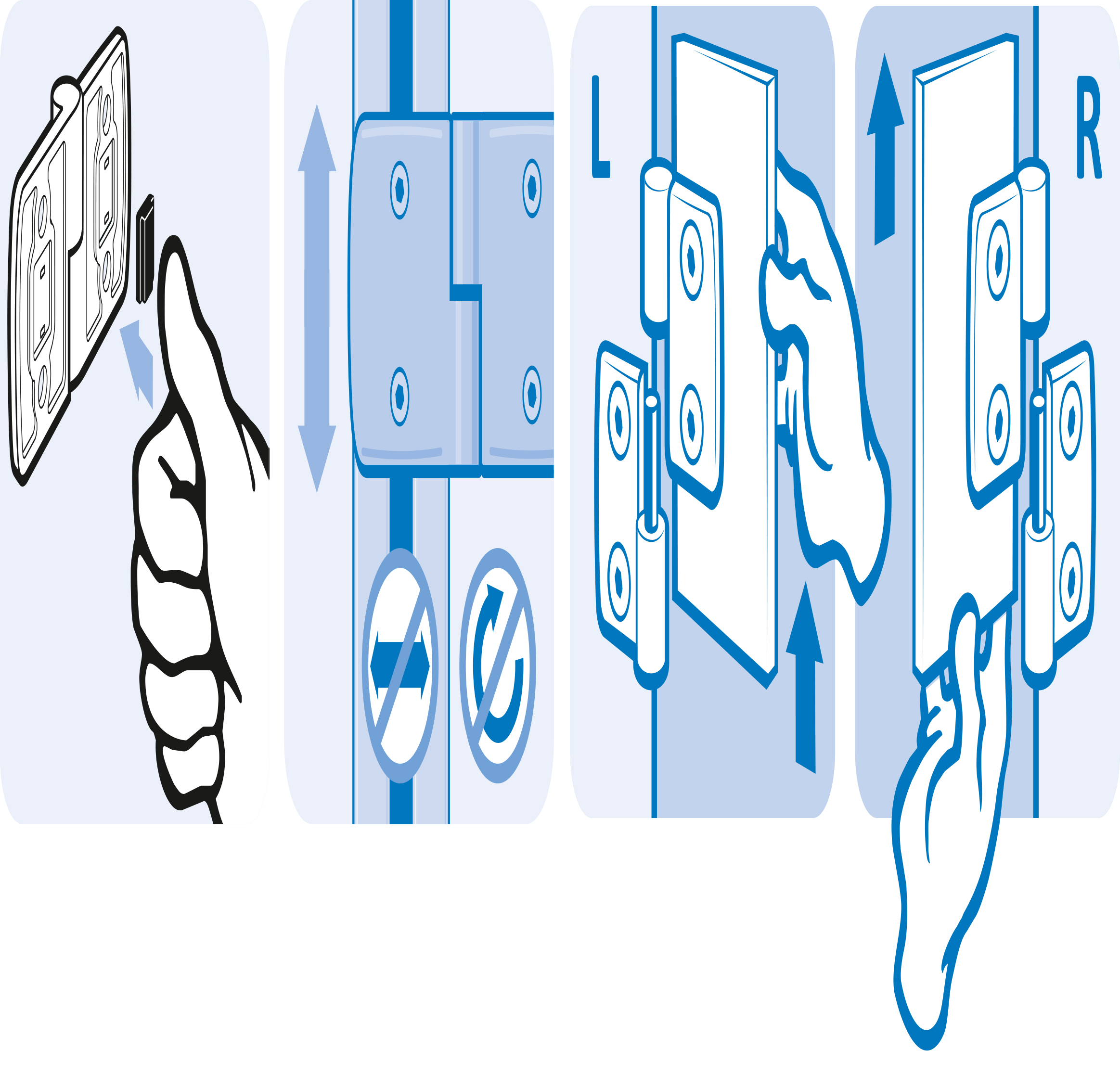

PFA_Model: Detachable

PFA_Pack_Quantity: 10 pieces

PFA_Surface: Wings: Powder coated - Pin: Plain

PFA_Tip: Compatible Central Bolts see 095AN05

Caratteristiche Prodotto

Produttore	FATH
Descrizione	Aluminum Die-cast Combi Hinge 40. Detachable. Alu Color, Detachable
Part number	095A4040L
Materiale	Wings: Die-cast aluminum - Pin: Stainless steel - Bearings: PTFE
Note	Wings: Powder coated - Pin: Plain Wing: Alu color

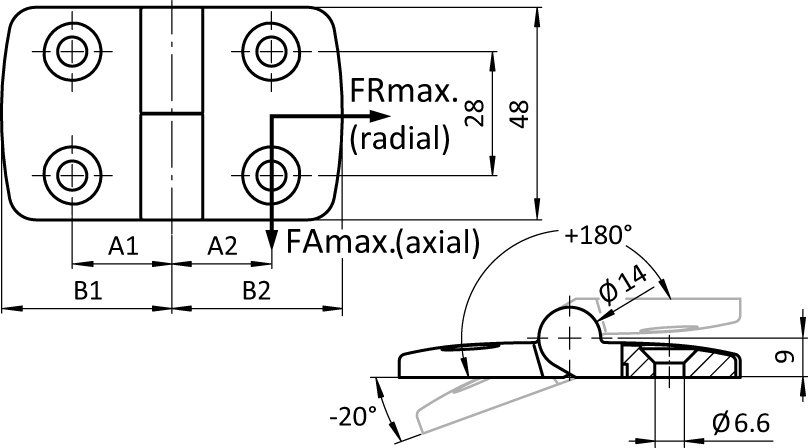

PA_Part_No	PA_Weight_g	PA_Combination	PA_upper_A1_mm	PA_upper_A2_mm	PA_upper_B1_mm	PA_upper_B2_mm	PA_FAmax_N	PA_FRmax_N	PA_Version
095A4040L	68.0	40 / 40	22.5	22.5	38.5	38.5	200	550	L: Left
095A4025L	62.0	40 / 25	22.5	15.0	38.5	26.0	250	410	L: Left
095A4030L	66.0	40 / 30	22.5	17.5	38.5	29.5	280	450	L: Left
095A4035L	70.0	40 / 35	22.5	20.0	38.5	36.0	250	500	L: Left
095A4060L	78.0	40 / 60	22.5	32.5	38.5	57.5	150	575	L: Left
095A4040R	68.0	40 / 40	22.5	22.5	38.5	38.5	200	550	R: Right
095A4025R	62.0	40 / 25	15.0	22.5	26.0	38.5	250	410	R: Right
095A4030R	66.0	40 / 30	17.5	22.5	29.5	38.5	280	450	R: Right
095A4035R	70.0	40 / 35	20.0	22.5	36.0	38.5	250	500	R: Right
095A4060R	78.0	40 / 60	32.5	22.5	57.5	38.5	150	575	R: Right
