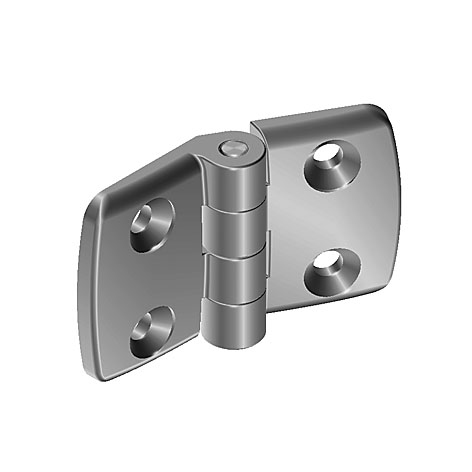

Aluminum Die-cast Combi Hinge 40. Non-detachable. Alu Color

COD: 095A4050F Categoria: Cerniere in Alluminio

PFA_Color: Wing: Alu color

PFA_Fastening: From the front. using M6 countersunk screws

PFA_Model: Non-detachable

PFA_Pack_Quantity: 10 pieces

PFA_Surface: Wings: Powder coated - Pin: Plain

PFA_Tip: Compatible Central Bolts see 095AN05

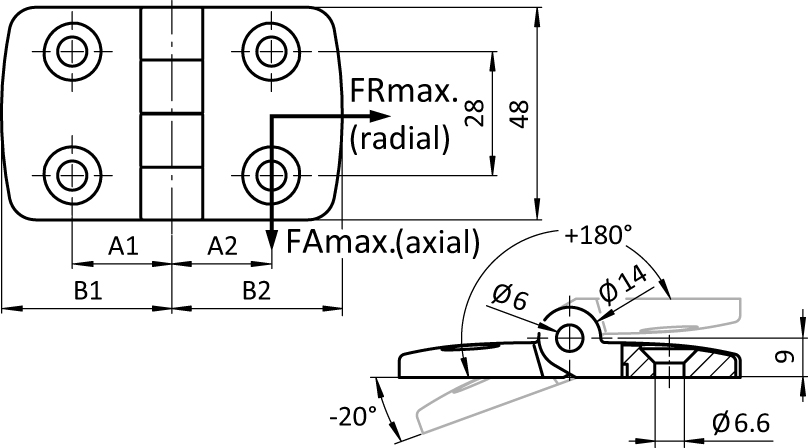

PA_upper_A1_mm: 22.5

PA_upper_B1_mm: 38.5

PA_FRmax_N: 400

PA_Version: Non-detachable

Caratteristiche Prodotto

Produttore	FATH
Descrizione	Aluminum Die-cast Combi Hinge 40. Non-detachable. Alu Color, Non-detachable
Part number	095A4050F
Materiale	Wings: Die-cast aluminum - Pin: Stainless steel - Bearings: PTFE
Note	Wings: Powder coated - Pin: Plain Wing: Alu color

PA_Part_No	PA_Weight_g	PA_Combination	PA_upper_A2_mm	PA_upper_B2_mm	PA_FAmax_N
095A4040F	69.0	40 / 40	22.5	38.5	250
095A4045F	71.0	40 / 45	25.0	43.5	250
095A4050F	74.0	40 / 50	27.5	48.5	250
095A4060F	79.0	40 / 60	32.5	57.5	100
