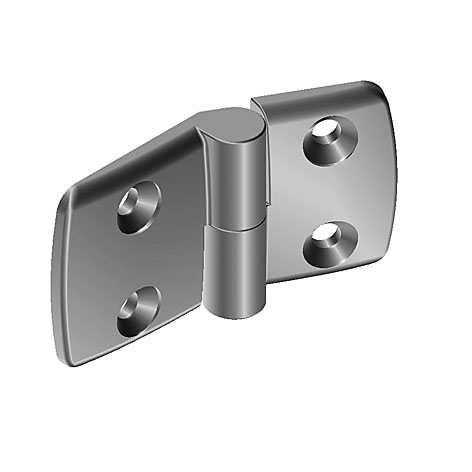

Aluminum Die-cast Combi Hinge 50. Detachable. Alu Color

COD: 095A5045L Categoria: Cerniere in Alluminio

PFA_Color: Wing: Alu color

PFA_Fastening: From the front. using M6 countersunk screws

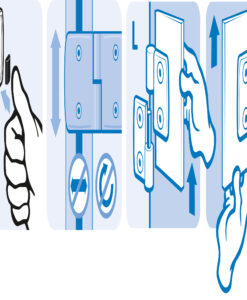

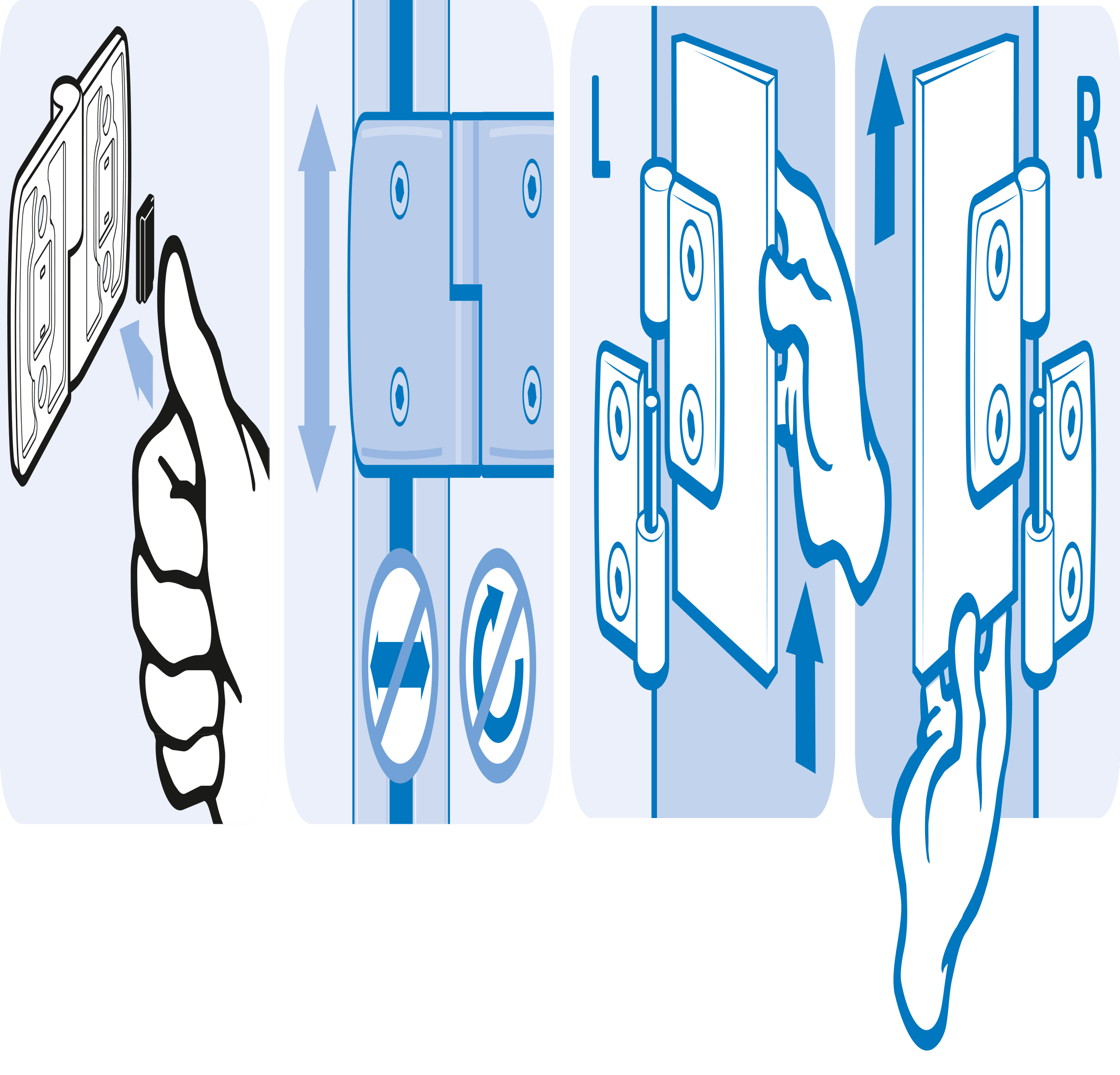

PFA_Model: Detachable

PFA_Pack_Quantity: 10 pieces

PFA_Surface: Wings: Powder coated - Pin: Plain

PFA_Tip: Compatible Central Bolts see 095AN05

Caratteristiche Prodotto

Produttore	FATH
Descrizione	Aluminum Die-cast Combi Hinge 50. Detachable. Alu Color, Detachable
Part number	095A5045L
Materiale	Wings: Die-cast aluminum - Pin: Stainless steel - Bearings: PTFE
Note	Wings: Powder coated - Pin: Plain Wing: Alu color

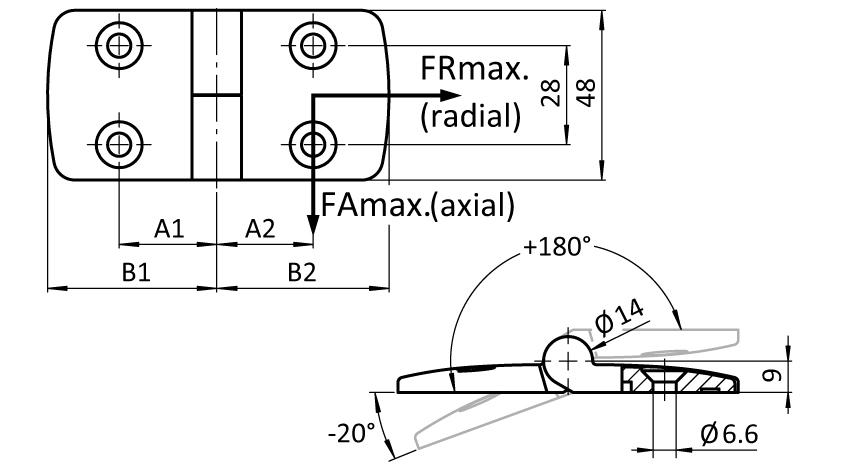

PA_Part_No	PA_Weight_g	PA_Combination	PA_upper_A1_mm	PA_upper_A2_mm	PA_upper_B1_mm	PA_upper_B2_mm	PA_FAmax_N	PA_FRmax_N	PA_Version
095A5050L	78.0	50 / 50	27.5	27.5	48.5	48.5	175	550	L: Left
095A5025L	67.0	50 / 25	27.5	15.0	48.5	26.0	250	410	L: Left
095A5030L	71.0	50 / 30	27.5	17.5	48.5	29.5	280	450	L: Left
095A5035L	75.0	50 / 35	27.5	20.0	48.5	36.0	250	500	L: Left
095A5040L	73.0	50 / 40	27.5	22.5	48.5	38.5	200	550	L: Left
095A5045L	75.0	50 / 45	27.5	25.0	48.5	43.5	200	550	L: Left
095A5050R	78.0	50 / 50	27.5	27.5	48.5	48.5	175	500	R: Right
095A5025R	67.0	50 / 25	15.0	27.5	26.0	48.5	250	410	R: Right
095A5030R	71.0	50 / 30	17.5	27.5	29.5	48.5	250	410	R: Right
095A5035R	75.0	50 / 35	20.0	27.5	36.0	48.5	250	500	R: Right
095A5040R	73.0	50 / 40	22.5	27.5	38.5	48.5	200	550	R: Right
095A5045R	75.0	50 / 45	25.0	27.5	43.5	48.5	200	550	R: Right
