Plastic Combi Hinge 25. Non-detachable. Black

COD: 095K2525F00 Categoria: Cerniere in plastica

PFA_Color: Black

PFA_Fastening: From the front. using M6 countersunk screws

PFA_Model: Non-detachable

PFA_Pack_Quantity: 10 pieces

PFA_Specials: ESD electrostatical discharging. further colors. centering pins for installation on aluminum profiles available on request

PA_Version: Non-detachable

Caratteristiche Prodotto

Produttore	FATH
Descrizione	Plastic Combi Hinge 25. Non-detachable. Black, Non-detachable
Part number	095K2525F00
Materiale	Wings: Plastic PA. glass fiber reinforced - Bolt: Stainless steel
Note	Black

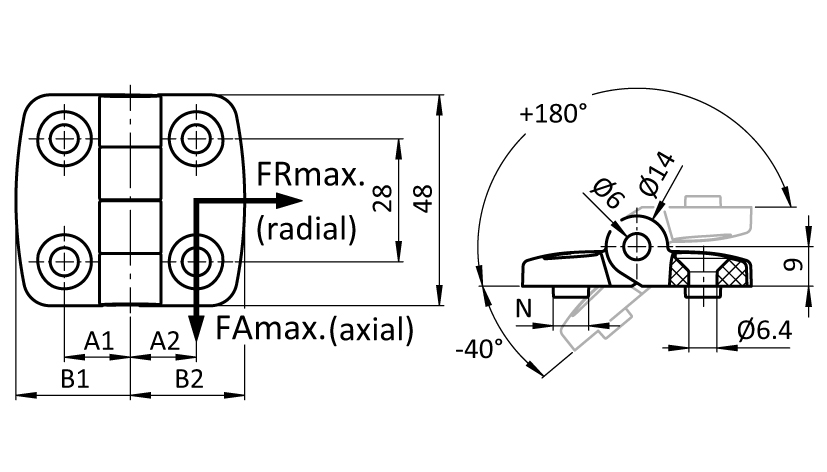

PA_Part_No	PA_Weight_g	PA_Color	PA_Combination	PA_upper_A1_mm	PA_upper_A2_mm	PA_upper_B1_mm	PA_upper_B2_mm	PA_FAmax_N	PA_FRmax_N	PA_Slot_upper_N_mm
095K2525F00	32.0		25 / 25	15.0	15.0	26.0	26.0	380	500
095K2525F06	32.0	Black	25 / 25	15.0	15.0	26.0	26.0	380	500	6
095K2525F08	32.0	Black	25 / 25	15.0	15.0	26.0	26.0	380	500	8
095K2530F00	34.0	Black	30 / 25	17.5	15.0	29.5	26.0	400	500
095K2535F00	36.0	Black	25 / 35	15.0	20.0	26.0	36.0	400	750
095K2540F00	38.0	Black	25 / 40	15.0	22.5	26.0	38.5	450	750
095K2545F00	39.0	Black	25 / 45	25.0	15.0	43.5	26.0	450	750
095K2550F00	34.1	Black	25 / 50	15.0	27.5	48.5	26.0	425	800
095K2560F00	41.0	Black	25 / 60	15.0	32.5	57.5	26.0	200	850
