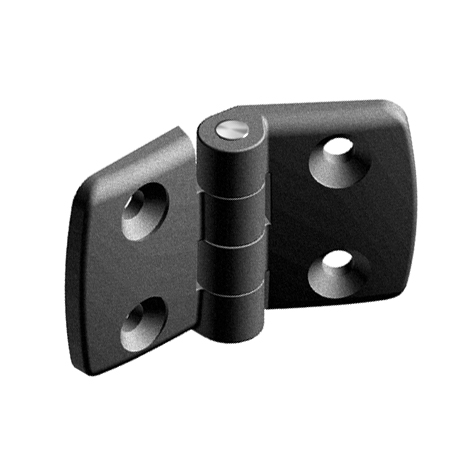

Plastic Combi Hinge 40. Non-detachable. Black

COD: 095K4040F10 Categoria: Cerniere in plastica

PFA_Color: Black

PFA_Fastening: From the front. using M6 countersunk screws

PFA_Model: Non-detachable

PFA_Pack_Quantity: 10 pieces

PFA_Specials: ESD electrostatical discharging. further colors. centering pins for installation on aluminum profiles available on request

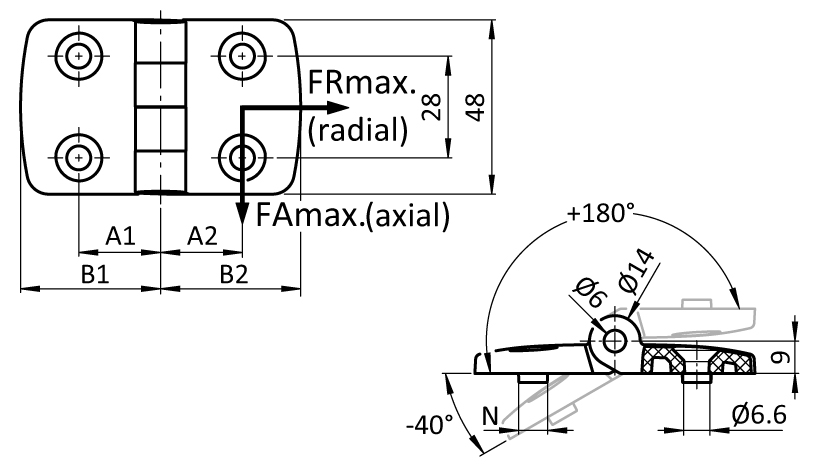

PA_upper_A1_mm: 22.5

PA_upper_B1_mm: 38.5

PA_Version: Non-detachable

Caratteristiche Prodotto

Produttore	FATH
Descrizione	Plastic Combi Hinge 40. Non-detachable. Black, Non-detachable
Part number	095K4040F10
Materiale	Wings: Plastic PA. glass fiber reinforced. - Bolt: Stainless steel
Set	Wings: Plastic PA. glass fiber reinforced. - Bolt: Stainless steel
Note	Black

PA_Part_No	PA_Weight_g	PA_Color	PA_Combination	PA_upper_A2_mm	PA_upper_B2_mm	PA_FAmax_N	PA_FRmax_N	PA_Slot_upper_N_mm
095K4040F00	43.0		40 / 40	22.5	38.5	450	750
095K4040F08	43.0	Black	40 / 40	22.5	38.5	450	750	8
095K4040F10	43.0	Black	40 / 40	22.5	38.5	450	750	10
095K4045F00	44.0	Black	40 / 45	25.0	43.5	450	750
095K4050F00	46.0	Black	40 / 50	27.5	48.5	425	800
095K4060F00	49.0	Black	40 / 60	32.5	57.5	175	850
