Plastic Combi Hinge 45. Detachable. Black

COD: 095K4545L10 Categoria: Cerniere in plastica

PFA_Color: Black

PFA_Fastening: From the front. using M6 countersunk screws

PFA_Model: Detachable

PFA_Pack_Quantity: 10 pieces

PFA_Specials: ESD electrostatical discharging. further colors. centering pins for installation on aluminum profiles available on request

Caratteristiche Prodotto

Produttore	FATH
Descrizione	Plastic Combi Hinge 45. Detachable. Black, Detachable
Part number	095K4545L10
Materiale	Wings: Plastic PA. glass fiber reinforced - Bolt: Stainless steel
Set	Wings: Plastic PA. glass fiber reinforced - Bolt: Stainless steel
Note	Black

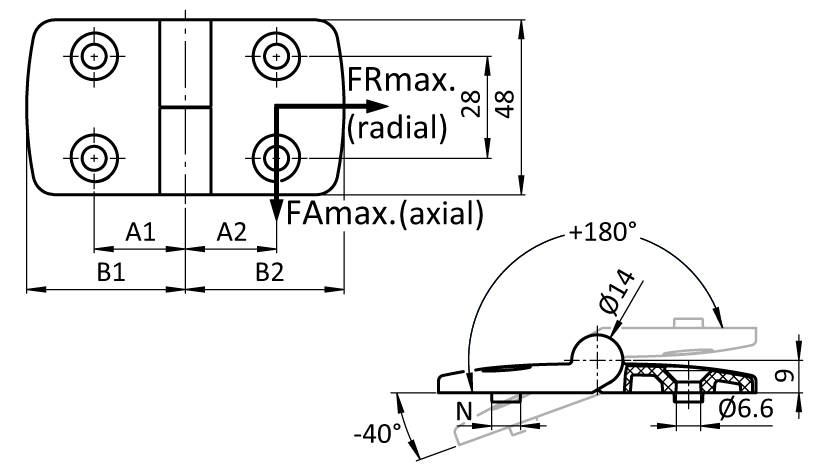

PA_Part_No	PA_Weight_g	PA_Surface	PA_Combination	PA_upper_A1_mm	PA_upper_A2_mm	PA_upper_B1_mm	PA_upper_B2_mm	PA_FAmax_N	PA_FRmax_N	PA_Slot_upper_N_mm	PA_Version
095K4545L00	45.0		45 / 45	25.0	25.0	43.5	43.5	325	800		L: Left
095K4545L08	45.0	Black	45 / 45	25.0	25.0	43.5	43.5	325	800	8	L: Left
095K4545L10	45.0	Black	45 / 45	25.0	25.0	43.5	43.5	325	800	10	L: Left
095K4535L00	42.0	Black	45 / 35	25.0	20.0	43.5	36.0	400	700		L: Left
095K4545R00	45.0	Black	45 / 45	25.0	25.0	43.5	43.5	325	800		R: Right
095K4545R08	45.0	Black	45 / 45	25.0	25.0	43.5	43.5	325	800	8	R: Right
095K4545R10	45.0	Black	45 / 45	25.0	25.0	43.5	43.5	325	800	10	R: Right
095K4530R00	40.0	Black	45 / 30	17.5	25.0	29.5	43.5	500	750		R: Right
095K4535R00	42.0	Black	45 / 35	20.0	25.0	36.0	43.5	325	800		R: Right
095K4540R00	43.0	Black	45 / 40	22.5	25.0	38.5	43.5	350	800		R: Right
095K4525L00	38.0	Black	45 / 25	25.0	15.0	43.5	26.0	425	650		L: Left
095K4540L00	43.0	Black	45 / 40	25.0	22.5	43.5	38.5	350	800		L: Left
095K4560L00	50.0	Black	45 / 60	25.0	32.5	43.5	57.5	240	800		L: Left
095K4560R00	50.0	Black	45 / 60	32.5	25.0	57.5	43.5	240	800		R: Right
