RIBE® Aluform Bolt

COD: 097AS10030 Categoria: Viti di collegamento

PFA_Model: With hexalobular socket TX

PFA_Pack_Quantity: 100 pieces

PFA_Surface: With dry film lubrication

Caratteristiche Prodotto

Produttore	FATH
Descrizione	RIBE® Aluform Bolt, With hexalobular socket TX
Part number	097AS10030
Materiale	Aluminum
Note	With dry film lubrication

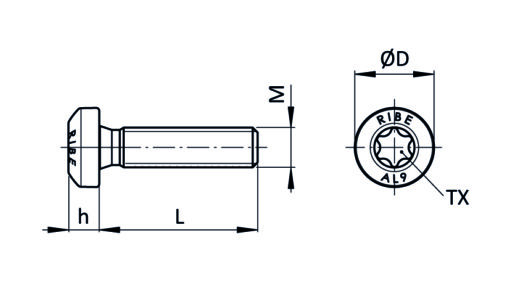

PA_Part_No	PA_Weight_g	PA_lower_h_mm	PA_Size_M_x_L_mm	PA_diameter_upper_D_mm	PA_TX
097AS04016	0.9	3.1	M4 x 16	8.0	T20
097AS04020	1.0	3.1	M4 x 20	8.0	T20
097AS04025	1.2	3.1	M4 x 25	8.0	T20
097AS04030	1.3	3.1	M4 x 30	8.0	T20
097AS05020	1.7	3.7	M5 x 20	10.0	T25
097AS05025	1.9	3.7	M5 x 25	10.0	T25
097AS05030	2.2	3.7	M5 x 30	10.0	T25
097AS05035	2.5	3.7	M5 x 35	10.0	T25
097AS05040	2.7	3.7	M5 x 40	10.0	T25
097AS06020	2.6	4.6	M6 x 20	12.0	T30
097AS06025	3.0	4.6	M6 x 25	12.0	T30
097AS06030	3.4	4.6	M6 x 30	12.0	T30
097AS06035	3.8	4.6	M6 x 35	12.0	T30
097AS06040	4.1	4.6	M6 x 40	12.0	T30
097AS08020	5.1	6.0	M8 x 20	16.0	T45
097AS08025	5.8	6.0	M8 x 25	16.0	T45
097AS08030	6.5	6.0	M8 x 30	16.0	T45
097AS08035	7.2	6.0	M8 x 35	16.0	T45
097AS08040	7.9	6.0	M8 x 40	16.0	T45
097AS08045	8.5	6.0	M8 x 45	16.0	T45
097AS10020	9.1	7.5	M10 x 20	20.0	T50
097AS10030	11.2	7.5	M10 x 30	20.0	T50
097AS10040	13.3	7.5	M10 x 40	20.0	T50
097AS10050	15.4	7.5	M10 x 50	20.0	T50
097AS10060	17.6	7.5	M10 x 60	20.0	T50
