COD: 098AK175KBZG
Categoria: Piedini
Caratteristiche Comuni alle Varianti
PFA_Color: Black
PFA_Model: Plastic PA. with bolt-down holes
PFA_Pack_Quantity: 1 piece
PFA_Specials: ESD electrostatical discharging. other sizes. other colors. bolt-on or glued anti-slip plate on request. - as factory assembled leveling foot on request
PFA_Tip: Compatible Threaded Rod see 098AM12066M. - Compatible Nut see 4DIN439BM5M et sq.. - Compatible Anti-slip Plate 098AG125B
Caratteristiche Prodotto
| Produttore | FATH |
|---|---|

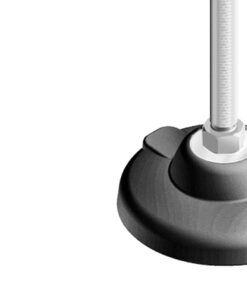

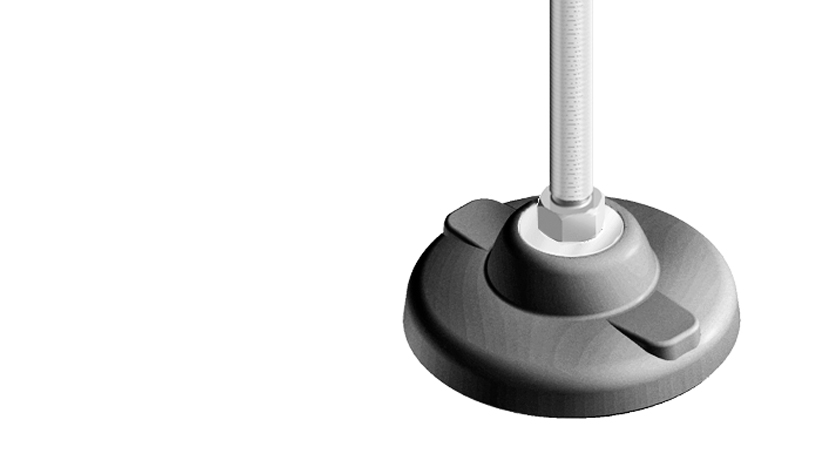

| Descrizione | Base PA BDH for Heavy-duty Pivot Feet, Plastic PA. with bolt-down holes |
| Part number | 098AK175KBZG |
| Materiale | Plastic PA. glass ball reinforced |
| Set | Plastic PA. glass ball reinforced |
| Note | Black |
Caratteristiche specifiche varianti

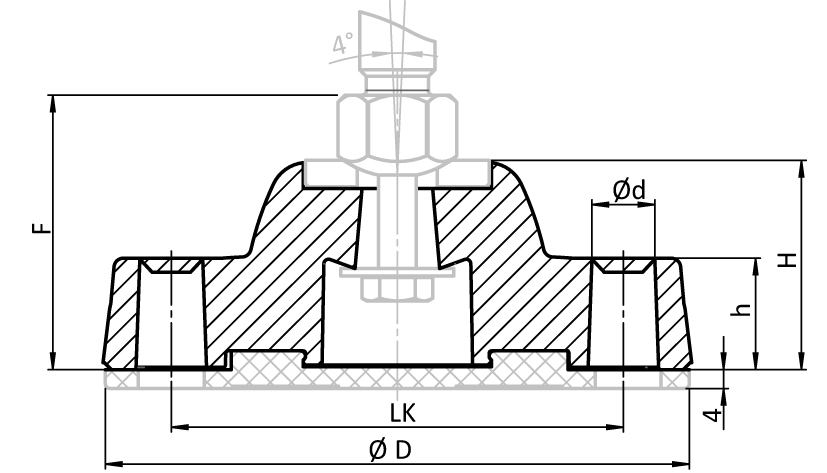

| PA_Part_No | PA_Base | PA_upper_D_mm | PA_upper_F_mm | PA_Weight_g | PA_LK_mm | PA_upper_H_mm | PA_lower_h_mm | PA_Fmax_N | PA_Version |
|---|---|---|---|---|---|---|---|---|---|
| 098AK125KBZ | 125 | 125 | 57.5 | 234.0 | 96 | 44 | 24 | 17650 | without anti-slip plate |
| 098AK175KBZ | 175 | 175 | 58.5 | 344.0 | 135 | 45 | 22 | 24500 | without anti-slip plate |
| 098AK125KBZG | 125 | 125 | 57.5 | 322.0 | 96 | 44 | 24 | 17650 | with Anti-slip plate |
| 098AK175KBZG | 175 | 175 | 58.5 | 566.0 | 135 | 45 | 22 | 24500 | with Anti-slip plate |
