COD: 098E030EG
Categoria: Piedini
Caratteristiche Comuni alle Varianti
PFA_Model: Stainless steel
PFA_Pack_Quantity: 100 pieces
PFA_Specials: Other sizes. glued anti-slip plate on request
PFA_Surface: Plain
PFA_Tip: Compatible Threaded Rod see 098EM08025E. - Compatible Nut see 4DIN439BM5E et sq.. - Compatible Anti-Slip-Plate see 098EG030. - (ECO feet are provided factory assembled)
Caratteristiche Prodotto
| Produttore | FATH |
|---|---|

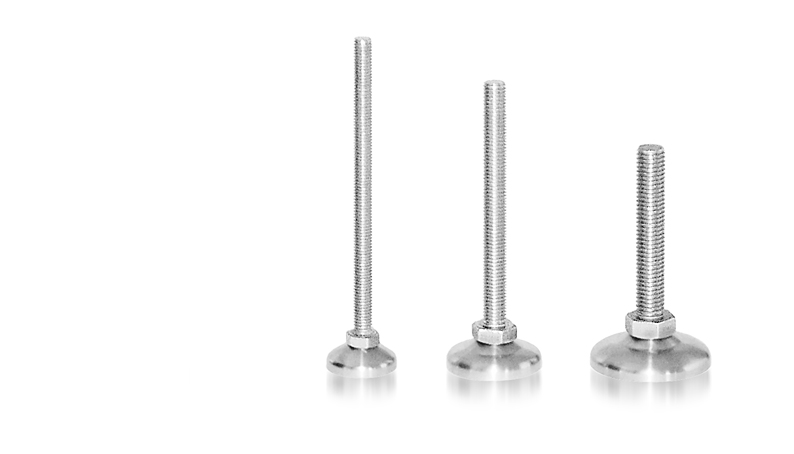

| Descrizione | Base SS for ECO Feet, Stainless steel |
| Part number | 098E030EG |
| Materiale | Stainless steel SS316 |
| Set | Stainless steel SS316 |
| Note | Plain |
Caratteristiche specifiche varianti

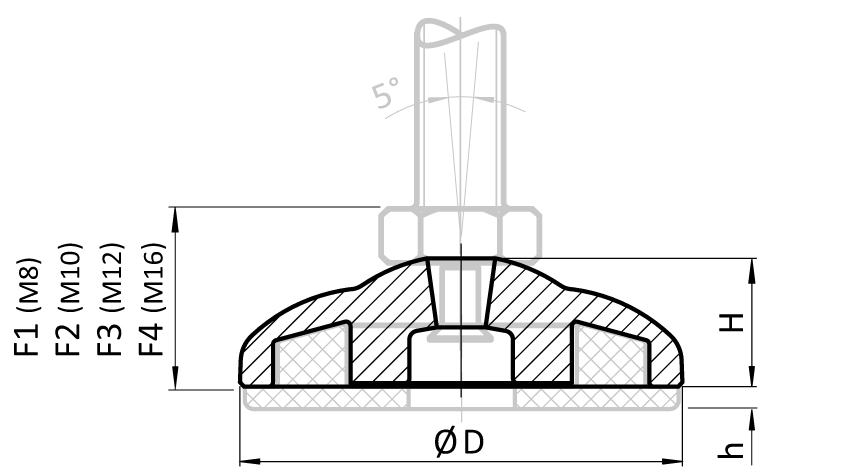

| PA_Part_No | PA_Base | PA_upper_D_mm | PA_Weight_g | PA_upper_H_mm | PA_lower_h_mm | PA_Fmax_N | PA_Version |
|---|---|---|---|---|---|---|---|
| 098E030E | 30 | 29 | 20.0 | 11.5 | 2.0 | 21580 | without anti-slip plate |
| 098E040E | 40 | 39 | 38.0 | 12.0 | 2.5 | 23500 | without anti-slip plate |
| 098E050E | 50 | 50 | 60.0 | 15.3 | 3.0 | 25500 | without anti-slip plate |
| 098E030EG | 30 | 29 | 24.0 | 11.5 | 2.0 | 21580 | with Anti-slip plate |
| 098E040EG | 40 | 39 | 44.0 | 12.0 | 2.5 | 23500 | with Anti-slip plate |
| 098E050EG | 50 | 50 | 70.0 | 15.3 | 3.0 | 25500 | with Anti-slip plate |
