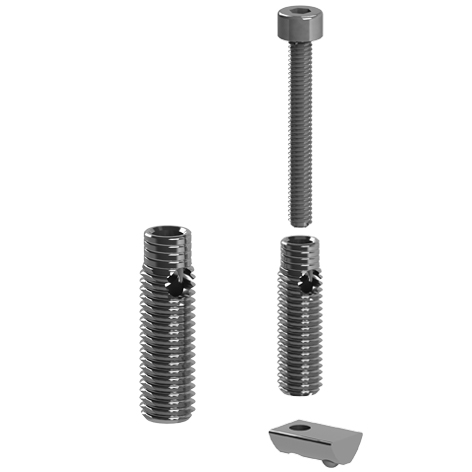

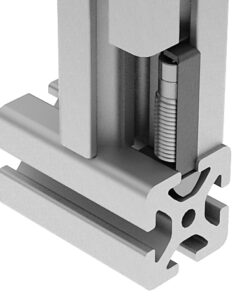

Automatic Connector Stainless Steel

Automatic Connector Stainless Steel

Automatic Connector Stainless Steel - immagine 2

Automatic Connector Stainless Steel - immagine 3

Automatic Connector Stainless Steel - immagine 4

COD: 099G061E Categoria: Connettore automatico

Caratteristiche Comuni alle Varianti

PFA_Model: Stainless steel

PFA_Pack_Quantity: 100 pieces

PFA_Surface: Plain

PFA_Tip: * Compatible Cover Cap see 099GA081K

PA_Profile: I

Caratteristiche Prodotto

Produttore	FATH
Descrizione	Automatic Connector Stainless Steel, Stainless steel
Part number	099G061E
Materiale	Stainless steel
Note	Plain

Caratteristiche specifiche varianti

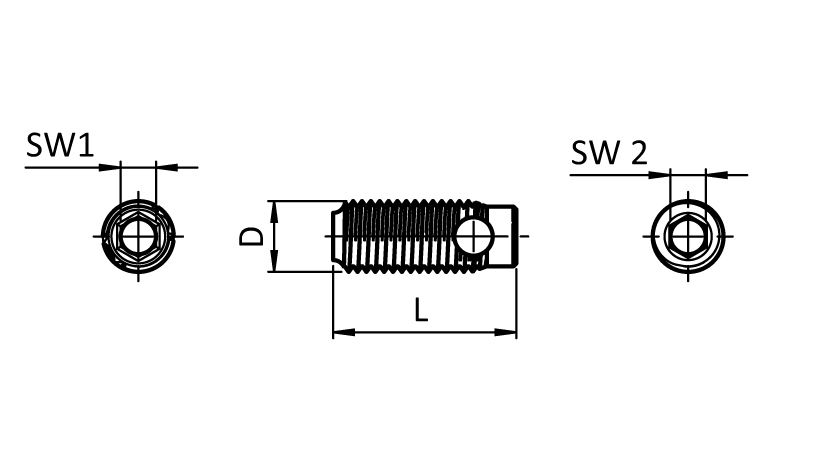

PA_Part_No	PA_upper_D_mm	PA_Weight_g	PA_upper_L_mm	PA_Screw	PA_Slot_upper_N_mm	PA_Profile_Width	PA_SW_2	PA_SW_1	PA_Version	PA_Tip
099GS051E	7.0	2.7	24.0		5	20	4		Cutting sleeve
099GS061E	10.0	7.4	27.0		6	30	5		Cutting sleeve
099GS081E	12.0	13.0	31.0		8	40	6		Cutting sleeve	*
099G051E	7.0	8.0	24.0	M4 x 30	5	20	4	3	With assembly set. incl. screw and T-slot nut
099G061E	10.0	18.0	27.0	M5 x 35	6	30	5	4	With assembly set. incl. screw and T-slot nut
099G081E	12.0	33.0	31.0	M6 x 40	8	40	6	5	With assembly set. incl. screw and T-slot nut	*
