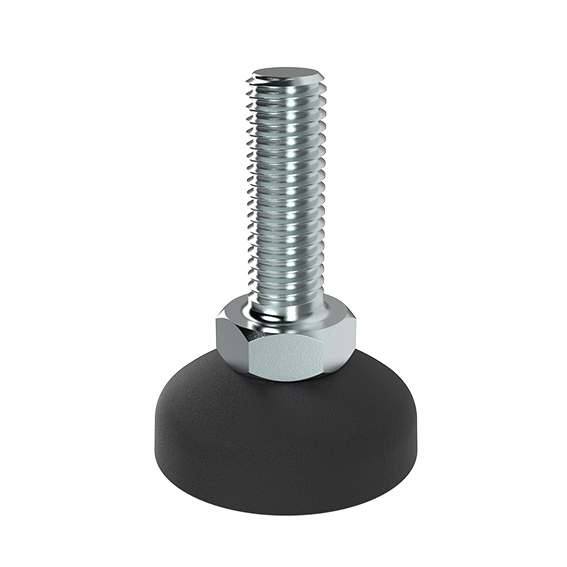

ECO Foot. PA / ST

COD: 9E030K12050M Categoria: Piedini

Caratteristiche Comuni alle Varianti

PFA_Color: Base: Black

PFA_Model: Plastic PA / steel

PFA_Pack_Quantity: 1 piece

PFA_ScrewJoint: Swiveling range ±5°

PFA_Specials: ESD electrostatical discharging. other sizes. other colors. glued anti-slip plate on request - Other lengths and other sizes on request

PFA_Surface: Threaded rod: Zinc plated

PFA_Tip: Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq.. - Compatible Anti-Slip Plate see 098EG030 et sq.

PA_Version: without anti-slip plate

Caratteristiche Prodotto

Produttore	FATH
Descrizione	ECO Foot. PA / ST, Plastic PA / steel
Part number	9E030K12050M
Materiale	Base: Plastic PA. glass ball reinforced - Threaded rod: Steel
Note	Threaded rod: Zinc plated Base: Black

Caratteristiche specifiche varianti

PA_Part_No	PA_Base	PA_upper_D_mm	PA_upper_F_mm	PA_Weight_g	PA_SW_mm	PA_upper_H_mm	PA_upper_M_x_upper_L_mm	PA_lower_h_mm	PA_upper_K_mm	PA_Fmax_N
9E030K08025M	30	29	16.0	19.6	13	11.5	M8 x 25	2.0	5.3	3430
9E030K08040M	30	29	16.0	24.6	13	11.5	M8 x 40	2.0	5.3	3430
9E030K08050M	30	29	16.0	27.6	13	11.5	M8 x 50	2.0	7.5	3430
9E030K10070M	30	29	16.5	51.6	17	11.5	M10 x 70	2.0	6.4	4600
9E030K12040M	30	29	17.5	51.6	19	11.5	M12 x 40	2.0	7.5	7550
9E030K12050M	30	29	17.5	58.6	19	11.5	M12 x 50	2.0	7.5	7550
9E030K12120M	30	29	17.5	107.6	19	11.5	M12 x 120	2.0	7.5	7550
9E040K08025M	40	39	16.5	22.6	13	12.0	M8 x 25	2.5	5.3	3430
9E040K08040M	40	39	16.5	27.5	13	12.0	M8 x 40	2.5	5.3	3430
9E040K08050M	40	39	16.5	30.6	13	12.0	M8 x 50	2.5	5.3	3430
9E040K08070M	40	39	16.5	36.6	13	12.0	M8 x 70	2.5	5.3	3430
9E040K08080M	40	39	16.5	39.6	13	12.0	M8 x 80	2.5	5.3	3430
9E040K08120M	40	39	16.5	54.6	13	12.0	M8 x 120	2.5	5.3	3430
9E040K10040M	40	39	17.0	40.6	17	12.0	M10 x 40	2.5	6.4	4600
9E040K10050M	40	39	17.0	45.6	17	12.0	M10 x 50	2.5	6.4	4600
9E040K10080M	40	39	17.0	59.6	17	12.0	M10 x 80	2.5	6.4	4600
9E040K10100M	40	39	17.0	68.6	17	12.0	M10 x 100	2.5	6.4	4600
9E040K12050M	40	39	18.0	61.6	19	12.0	M12 x 50	2.5	7.5	7550
9E040K12070M	40	39	18.0	75.6	19	12.0	M12 x 70	2.5	7.5	7550
9E040K12100M	40	39	18.0	96.6	19	12.0	M12 x 100	2.5	7.5	7550
9E040K16150M	40	39	20.5	241.6	24	12.0	M16 x 150	2.5	10.0	14200
9E050K08040M	50	50	19.8	35.6	13	15.3	M8 x 40	3.0	5.3	3430
9E050K10050M	50	50	20.3	53.6	17	15.3	M10 x 50	3.0	6.4	4600
9E050K10100M	50	50	20.3	76.6	17	15.3	M10 x 100	3.0	6.4	4600
9E050K10120M	50	50	20.3	87.6	17	15.3	M10 x 120	3.0	6.4	4600
9E050K12025M	50	50	21.3	52.6	19	15.3	M12 x 25	3.0	7.5	7550
9E050K12050M	50	50	21.3	69.6	19	15.3	M12 x 50	3.0	7.5	7550
9E050K12070M	50	50	21.3	83.6	19	15.3	M12 x 70	3.0	7.5	7550
9E050K12080M	50	50	21.3	90.6	19	15.3	M12 x 80	3.0	7.5	7550
9E050K12100M	50	50	21.3	104.6	19	15.3	M12 x 100	3.0	7.5	7550
9E050K12120M	50	50	21.3	118.6	19	15.3	M12 x 120	3.0	7.5	7550
9E050K16040M	50	50	23.8	105.6	24	15.3	M16 x 40	3.0	10.0	14200
9E050K16070M	50	50	23.8	141.6	24	15.3	M16 x 70	3.0	10.0	14200
9E050K16150M	50	50	23.8	249.6	24	15.3	M16 x 150	3.0	10.0	14200
