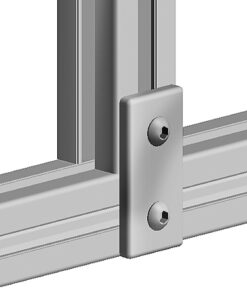

Connection Plate AL Rectangular 2 Hole. 1 Slot Version

Connection Plate AL Rectangular 2 Hole. 1 Slot Version

Connection Plate AL Rectangular 2 Hole. 1 Slot Version - immagine 2

Connection Plate AL Rectangular 2 Hole. 1 Slot Version - immagine 3

Connection Plate AL Rectangular 2 Hole. 1 Slot Version - immagine 4

COD: 093VA4080 Categoria: Piastre di collegamento

Caratteristiche Comuni alle Varianti

PFA_Model: Aluminum

PFA_Pack_Quantity: 10 pieces

PFA_Specials: Other surfaces. other colors on request

PFA_Surface: Anodized

Caratteristiche Prodotto

Produttore	FATH
Descrizione	Connection Plate AL Rectangular 2 Hole. 1 Slot Version, Aluminum
Part number	093VA4080
Materiale	Aluminum
Set	Aluminum
Note	Anodized

Caratteristiche specifiche varianti

PA_Part_No	PA_Weight_g	PA_Surface	PA_upper_H_mm	PA_upper_L_mm	PA_upper_A_mm	PA_upper_B_mm	PA_diameter_upper_D_mm	PA_Version
093VA2040	7.0		4.0	38.0	20.0	18.0	5.5	20 / 40
093VA2551	11.0	Anodized	4.0	48.0 (1.89")	25.4 (1")	23.0 (0.9")	7.0	25 / 51 - 1" / 2"
093VA3060	20.0	Anodized	5.0	57.0	30.0	27.0	7.0	30 / 60
093VA3876	37.0	Anodized	6.0	72.0 (2.8")	38.1 (1.5")	34.0 (1.34")	9.0	38 / 76 - 1.5" / 3"
093VA4080	42.0	Anodized	6.0	76.0	40.0	36.0	9.0	40 / 80
093VA4590	55.0	Anodized	6.0	86.0	45.0	41.0	9.0	45 / 90
