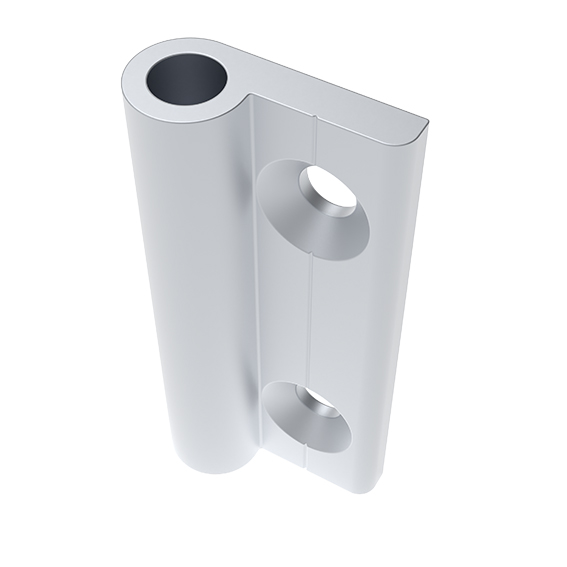

External Hinge Component

COD: 095AH20 Categoria: Aluminum Hinges

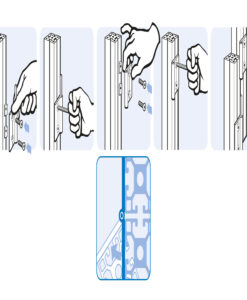

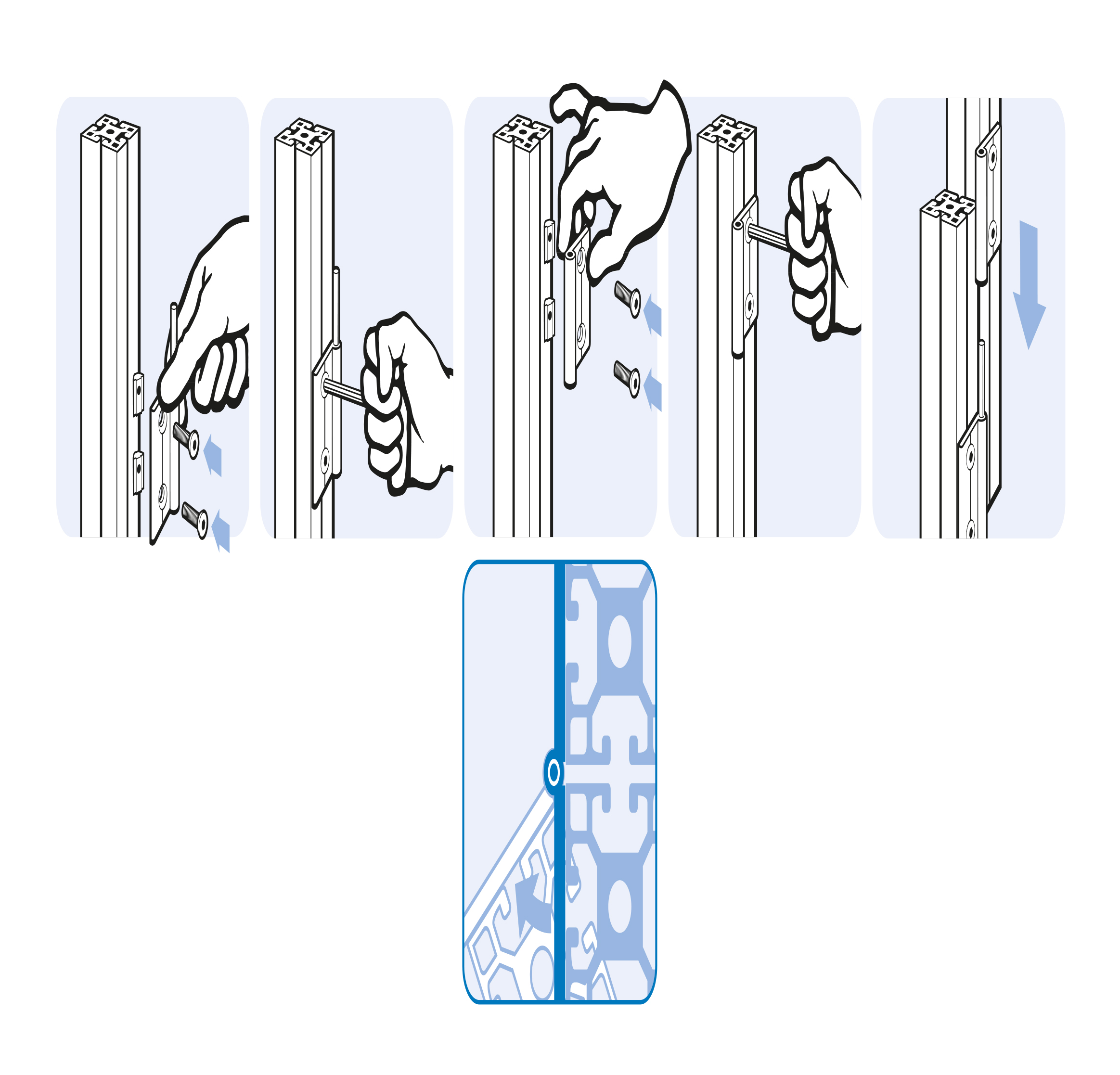

PFA_Fastening: From the front. using countersunk screws

PFA_Model: Aluminum. anodized

PFA_Pack_Quantity: 10 pieces

PFA_Surface: Anodized

PFA_Tip: Compatible Axle for Hinge Component see 095AIR01 - Compatible Cover Cap for Hinge Component see 095AIA

PA_FAmax_N: 150

PA_FRmax_N: 100

Caratteristiche Prodotto

Produttore	FATH
Descrizione	External Hinge Component, Aluminum. anodized
Part number	095AH20
Materiale	Aluminum
Note	Anodized

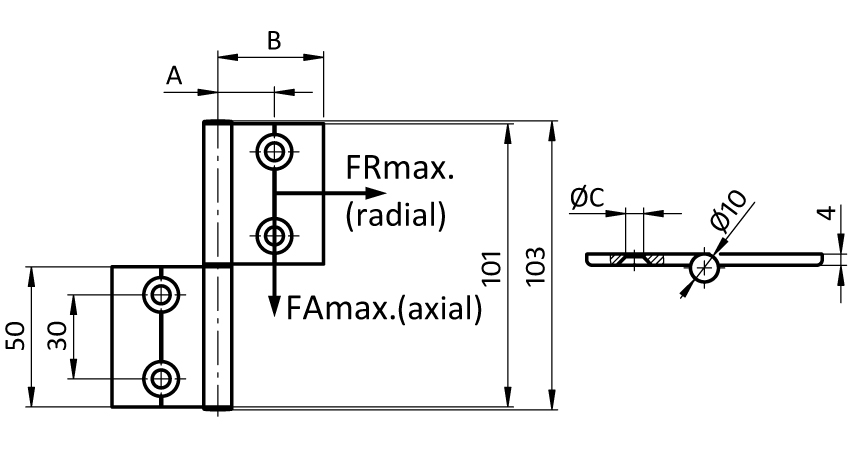

PA_Part_No	PA_Weight_g	PA_Color	PA_Surface	PA_upper_A_mm	PA_upper_C_mm	PA_upper_B_mm	PA_Version
095AH20	13.5			10.5	Ø 5.3	18.0	20
095AH25	15.9	Cover cap: alu color	Wing: Anodized - Bolt: Plain - Cover cap: Coated	12.9	Ø 6.4	23.4	25
095AH30	18.2	Cover cap: alu color	Wing: Anodized - Bolt: Plain - Cover cap: Coated	15.2	Ø 6.4	27.7	30
095AH38	22.0	Cover cap: alu color	Wing: Anodized - Bolt: Plain - Cover cap: Coated	19.25	Ø 6.4	35.8	38
095AH40	23.6	Cover cap: alu color	Wing: Anodized - Bolt: Plain - Cover cap: Coated	20.2	Ø 6.4	37.7	40
095AH45	26.3	Cover cap: alu color	Wing: Anodized - Bolt: Plain - Cover cap: Coated	22.7	Ø 6.4	42.7	45
095AH50	29.0	Cover cap: alu color	Wing: Anodized - Bolt: Plain - Cover cap: Coated	25.2	Ø 6.4	47.7	50
095AH60	34.4	Cover cap: alu color	Wing: Anodized - Bolt: Plain - Cover cap: Coated	30.2	Ø 6.4	57.7	60
