COD: 098DI080ZS
Categoria: Piedini
Caratteristiche Comuni alle Varianti
PFA_Color: Black
PFA_Model: Zinc die-cast
PFA_Pack_Quantity: 10 pieces
PFA_Specials: Other surfaces. other sizes. other colors. screwed or glued anti-slip plate on request. - As factory assembled leveling foot on request
PFA_Surface: Powder coated
PFA_Tip: Compatible Threaded Rod see 098DM08025M et sq.. - Compatible Nut see 4DIN439BM5M et sq.. - Compatible Anti-slip Plate see 098DG030 f.. - Compatible Floor Mounting see 098BI060ZS
Caratteristiche Prodotto
| Produttore | FATH |
|---|---|

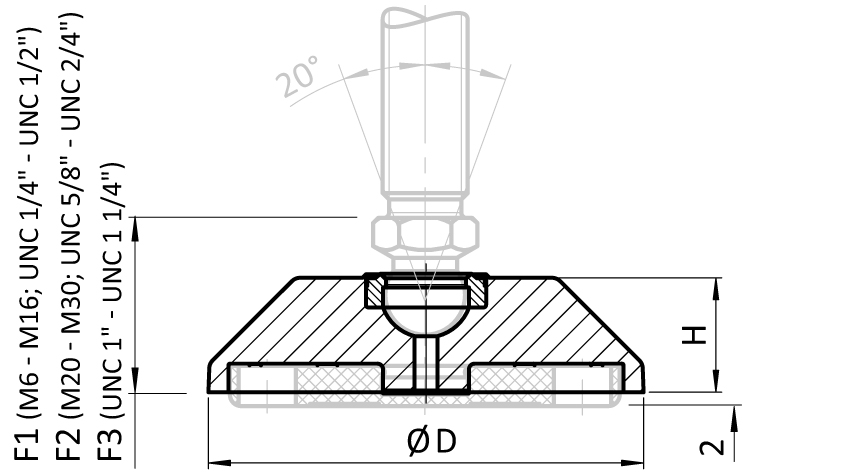

| Descrizione | Trapezoid Base for Swivel Feet Ball Joint 15, Zinc die-cast |
| Part number | 098DI080ZS |
| Materiale | Zinc die-cast |
| Set | Zinc die-cast |
| Note | Powder coated Black |
Caratteristiche specifiche varianti
| PA_Part_No | PA_Base | PA_upper_D_mm | PA_Weight_g | PA_upper_H_mm | PA_Fmax_N | PA_Version |
|---|---|---|---|---|---|---|
| 098DI060ZS | 60 | 59 | 98.0 | 18 | 24500 | without anti-slip plate |
| 098DI080ZS | 80 | 76 | 109.0 | 20 | 29400 | without anti-slip plate |
| 098DI060ZSG | 60 | 59 | 110.0 | 18 | 24500 | with Anti-slip plate |
| 098DI080ZSG | 80 | 76 | 122.0 | 20 | 29400 | with Anti-slip plate |
