COD: 9D120E24150E
Categoria: Piedini
Caratteristiche Comuni alle Varianti
PFA_Model: Stainless steel. without bolt-down holes
PFA_Pack_Quantity: 1 piece
PFA_Specials: ESD electrostatical discharging. other sizes. other colors. glued anti-slip plate on request - Other lengths and other sizes on request
PFA_Surface: Base: Plain - Threaded rod: Plain
PFA_Tip: Compatible Nut see 4DIN439BM5M et sq. and 4DIN934M5M et sq.. - Compatible Anti-Slip Plate see 098DG030 et sq.
PA_Version: without anti-slip plate
Caratteristiche Prodotto
| Produttore | FATH |
|---|---|

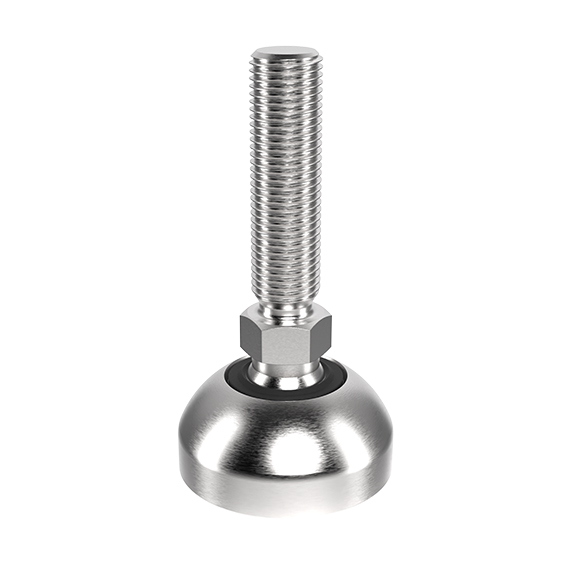

| Descrizione | Swivel Foot. SS / SS - Ball Joint 15, Stainless steel. without bolt-down holes |
| Part number | 9D120E24150E |
| Materiale | Base: Stainless steel - Threaded rod: Stainless steel |
| Note | Base: Plain - Threaded rod: Plain |
Caratteristiche specifiche varianti
| PA_Part_No | PA_Base | PA_upper_D_mm | PA_upper_F_mm | PA_Weight_g | PA_SW_mm | PA_upper_M_x_upper_L_mm | PA_Fmax_N |
|---|---|---|---|---|---|---|---|
| 9D040E12045E | 40 | 39 | 29.5 | 154.0 | 14 | M12 x 45 | 7550 |
| 9D080E16125E | 80 | 79 | 29.5 | 570.0 | 17 | M16 x 125 | 14200 |
| 9D120E24150E | 120 | 119 | 32.5 | 1327.0 | 24 | M24 x 150 | 39200 |
