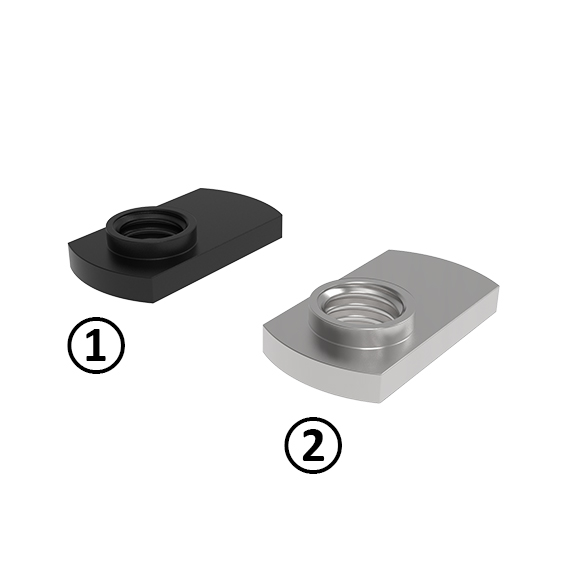

ECO T-nut Style C Eccentric

ECO T-nut Style C Eccentric

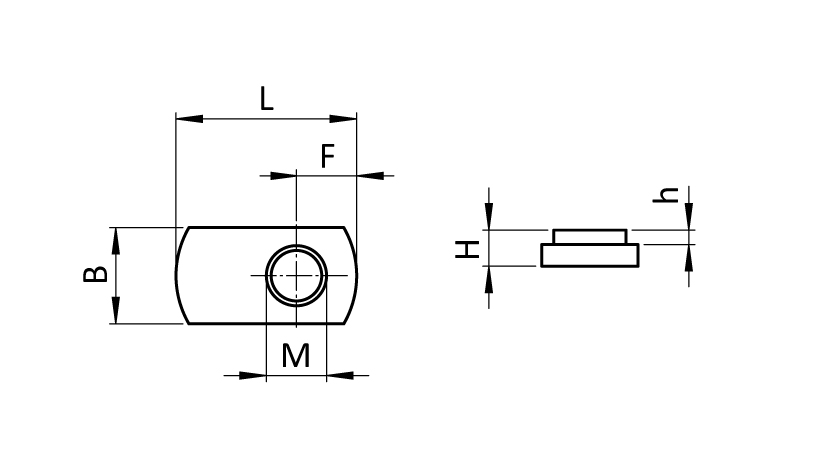

ECO T-nut Style C Eccentric - immagine 2

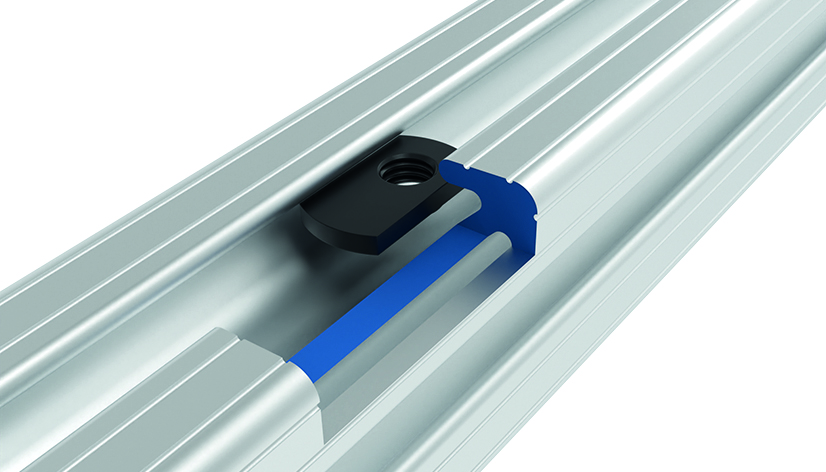

ECO T-nut Style C Eccentric - immagine 3

ECO T-nut Style C Eccentric - immagine 4

COD: 096E40M6 Categoria: Cursori ECO

Caratteristiche Comuni alle Varianti

PFA_Color: Black. -

PFA_Model: Steel / stainless steel

PFA_Pack_Quantity: 100 pieces

PFA_Surface: Zinc plated / plain

PFA_Tip: Compatible ECO Connection Plate AL see 093EVA2551S et sq.

Caratteristiche Prodotto

Produttore	FATH
Descrizione	ECO T-nut Style C Eccentric, Steel / stainless steel
Part number	096E40M6
Materiale	Steel / stainless steel SS304
Set	Steel
Note	Zinc plated / plain Black. -

Caratteristiche specifiche varianti

PA_Part_No	PA_upper_F_mm	PA_Weight_g	PA_upper_H_mm	PA_lower_h_mm	PA_upper_L_mm	PA_upper_M	PA_upper_B_mm	PA_Slot_upper_N_mm	PA_Fig	PA_Grid
096E20M5	5.0	2.0	3.0	1.0	15.0	M5	8.0	5	①	20
096E30M6	8.0	7.0	4.5	1.5	20.5	M6	15.0	6	①	30
096E40M6	8.0	11.0	5.0	1.5	25.0	M6	16.0	8	①	40
096E40M8	8.0	10.0	5.0	1.5	25.0	M8	16.0	8	①	40
096E45M8	10.0	17.0	5.5	1.5	32.0	M8	18.0	10	①	45
096E20M5E	5.0	2.0	3.0	1.0	15.0	M5	8.0	5	②	20
096E30M6E	8.0	7.0	4.5	1.5	20.5	M6	15.0	6	②	30
096E40M6E	8.0	11.0	5.0	1.5	25.0	M6	16.0	8	②	40
096E40M8E	8.0	10.0	5.0	1.5	25.0	M8	16.0	8	②	40
096E45M8E	10.0	17.0	5.5	1.5	32.0	M8	18.0	10	②	45
096E15U5/16-18S02	8.0 (0.31")	9.47	5.5 (0.21")	2.0 (0.07")	25.0 (0.98")	5/16-18 UNC	16.0 (0.62")	8	①	38.1 (1.5")
