COD: 098D080EB
Categoria: Piedini
Caratteristiche Comuni alle Varianti
PFA_Model: Stainless steel. with bolt-down holes
PFA_Pack_Quantity: 10 pieces
PFA_Specials: Other sizes. glued anti-slip plate on request. - As factory assembled leveling foot on request
PFA_Surface: Plain
PFA_Tip: Compatible Threaded Rod see 098DM08025E et sq.. - Compatible Nut see 4DIN439BM5E et sq.. - Compatible Anti-Slip Plate see 098DG030
Caratteristiche Prodotto
| Produttore | FATH |
|---|---|

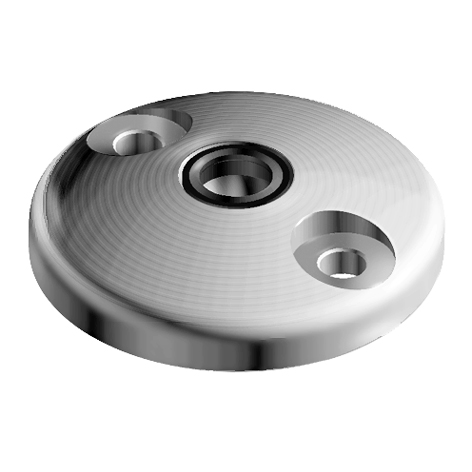

| Descrizione | Base SS BDH for Swivel Feet. Ball Joint 15, Stainless steel. with bolt-down holes |
| Part number | 098D080EB |
| Materiale | Stainless steel SS303 |
| Note | Plain |
Caratteristiche specifiche varianti

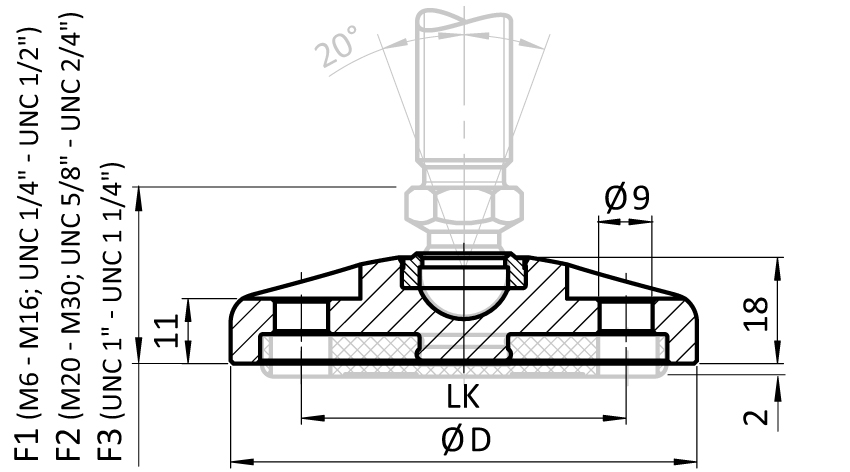

| PA_Part_No | PA_Base | PA_upper_D_mm | PA_Weight_g | PA_LK_mm | PA_Fmax_N | PA_Version |
|---|---|---|---|---|---|---|
| 098D080EB | 80 | 79 | 354.0 | 55 | 29400 | without anti-slip plate |
| 098D100EB | 100 | 99 | 587.0 | 74 | 39200 | without anti-slip plate |
| 098D120EB | 120 | 119 | 830.0 | 94 | 39200 | without anti-slip plate |
| 098D080EBG | 80 | 79 | 377.0 | 55 | 29400 | with Anti-slip plate |
| 098D100EBG | 100 | 99 | 624.0 | 74 | 39200 | with Anti-slip plate |
| 098D120EBG | 120 | 119 | 890.0 | 94 | 39200 | with Anti-slip plate |
